282815-7 | TE Connectivity
PCB terminal, 7 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 282815-7
Order No.: 71P7012
EAN: 4099891630553
MPN:
282815-7
Unit Price (€ / pc.)
2.7489 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5466 €
25 pcs.
2.3800 €
50 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale

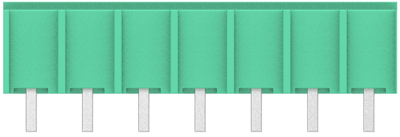

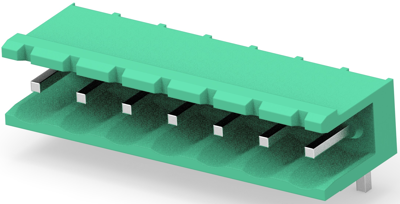

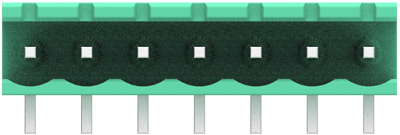

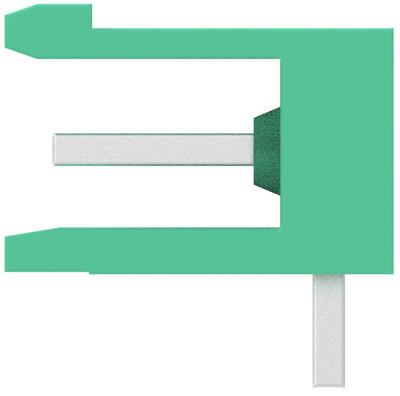

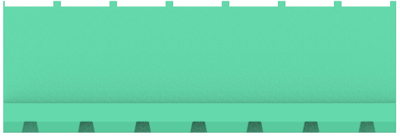

PCB terminal, 282815-7, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 7 Position, 5.08 mm Centerline, 1 Row, 30 - 12 AWG Wire size, 0.05 - 3 mm² Wire size, 15 A.
Applications
- Industrial control
- HVAC equipment and control
- Communications equipment
- Test and measurement
- Fire and security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 12 mm | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 15 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-3 mm² | |
| Colour | green | |
| Pin number | 7 pole | |
| Assembly | THT | |
| Height | 8.35 mm | |
| Connection | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
