2350397-8 | TE Connectivity

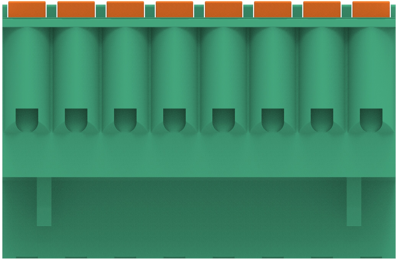

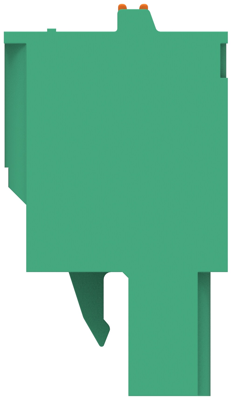

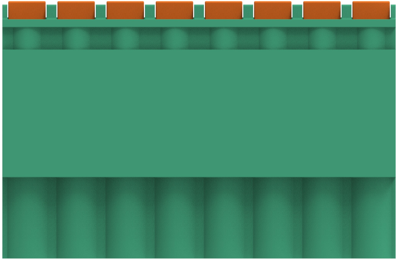

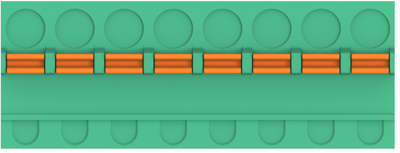

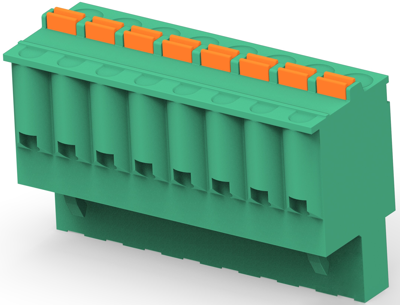

PCB terminal, 8 pole, pitch 5 mm, AWG 26-12, 10 A, spring-clamp connection, green, 2350397-8
Order No.: 71P6782
EAN: 4099891630416
MPN:
2350397-8
Unit Price (€ / pc.)
7.5327 € *
Available in 5 Days: 2,880 pcs. - if ordered today
Total Price:
7.53 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5327 €
5 pcs.
7.1400 €
10 pcs.
6.6759 €
25 pcs.
6.0928 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 2350397-8, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 8 Position, 5 mm Centerline, 1 Row, Top wire entry angle, 26 - 12 AWG Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Width | 15 mm | |
| Colour | green | |
| Pin number | 8 pole | |
| AWG cross-section | AWG 26-12 | |
| Rated voltage | 300 V | |
| Height | 24.4 mm | |
| Rated current | 10 A | |
| Cable cross-section | 0.13-3.31 mm² | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
