2336488-4 | TE Connectivity
PCB terminal, 4 pole, pitch 5 mm, AWG 24-14, 16 A, cage clamp, black, 2336488-4
Unit Price (€ / pc.)
8.0087 € *
Available in 5 Days: 2,950 pcs. - if ordered today
Total Price:
8.01 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0087 €
5 pcs.
7.5922 €
10 pcs.
7.1043 €
25 pcs.
6.4736 €
*incl. VAT plus shipping costs
Subject to prior sale

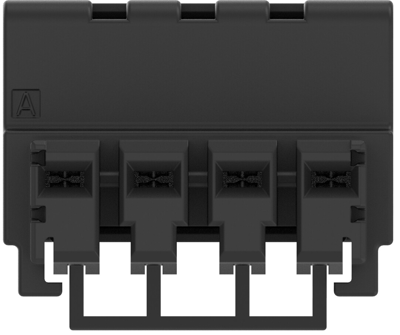

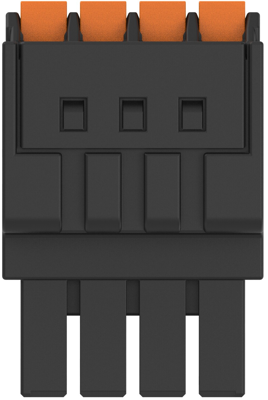

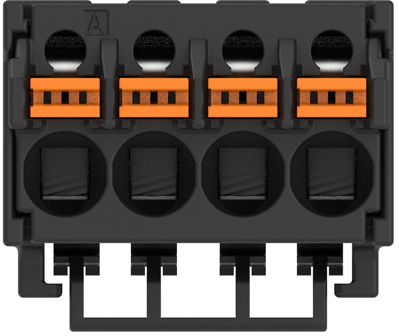

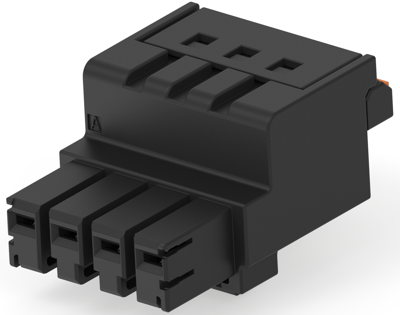

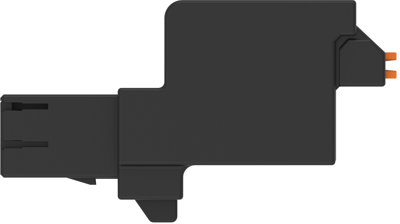

PCB Terminal, 2336488-4, TE Connectivity
The 2336488-4 is a compact 5-mm pitch wire-to-board PCB connector with field-installable, time-saving push-in clamp termination. The center-locking lever has clear tactile and audible mating feedback to ensure safe mating.
Applications
- Servo Drive/Inverter Drive Power inlet/outlet
- Industrial Microcontrols
- Robot and Cobot control units
- PLCs Power inlet/outlet
- Controls in building automation and household appliances
Technical specifications
Filter | Property | Value |
---|---|---|
Connection | cage clamp | |
Width | 22 mm | |
Colour | black | |
Pin number | 4 pole | |
AWG cross-section | AWG 24-14 | |
Rated voltage | 300 V | |
Height | 18.65 mm | |
Rated current | 16 A | |
Grid | 5 mm |
Download
Logistics
Property | Value |
---|---|
Country of origin | CZ |
Customs tariff number | 85366990 |
Compliance
Property | Value |
---|---|
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
