2305909-5 | TE Connectivity
PCB terminal, 5 pole, pitch 5 mm, AWG 26-12, 15 A, screw connection, black, 2305909-5
Unit Price (€ / pc.)
4.6172 € *
Available in 5 Days: 1,960 pcs. - if ordered today
Total Price:
4.62 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6172 €
10 pcs.
4.2959 €
25 pcs.
4.0103 €
50 pcs.
3.6414 €
*incl. VAT plus shipping costs
Subject to prior sale

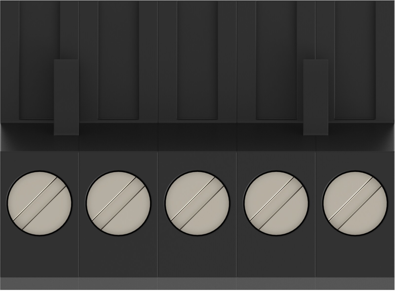

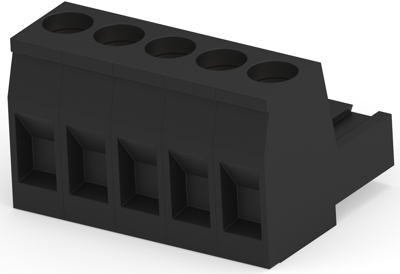

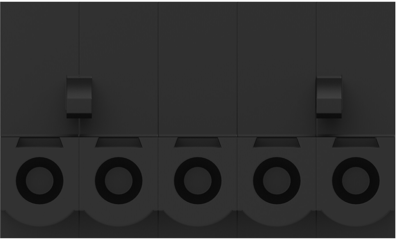

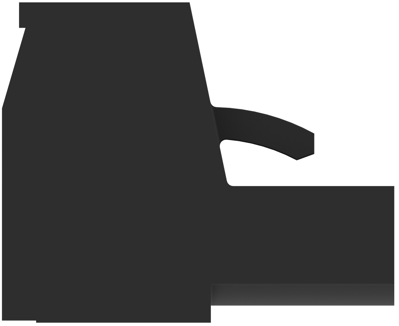

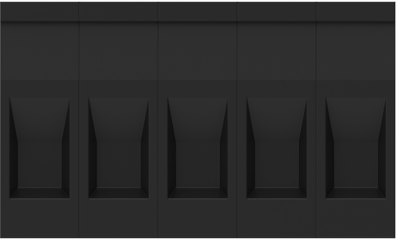

PCB terminal, 2305909-5, TE Connectivity
The 2305909-5 is a two-piece pluggable connector solution designed for seeking to switch from wave soldering to surface mount PCB processing. This product allows for simple reflow soldering and faster PCB assembly.
Applications
- HVAC Equipment and control
- Industrial control
- Security system
- Industrial lighting solutions
- Elevator/Escalator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9.8 mm | |
| Grid | 5 mm | |
| AWG cross-section | AWG 26-12 | |
| Rated current | 15 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.13-3.31 mm² | |
| Colour | black | |
| Pin number | 5 pole | |
| Assembly | THT | |
| Height | 15 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
