2213936-7 | TE Connectivity
PCB terminal, 7 pole, pitch 3.5 mm, AWG 30-16, 8 A, screw connection, black, 2213936-7
Unit Price (€ / pc.)
3.7485 € *
Available in 5 Days: 4,000 pcs. - if ordered today

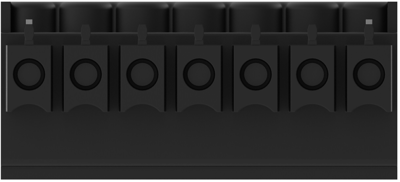

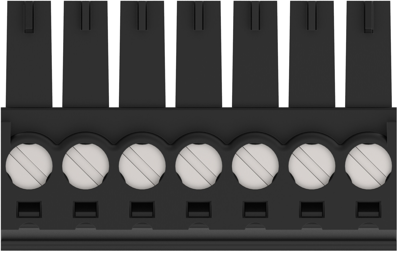

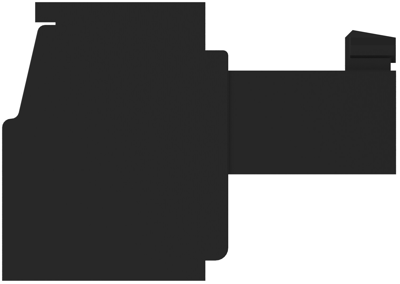

PCB terminal, 2213936-7, TE Connectivity
The 2213936-7 is a two-piece pluggable connector solution designed for seeking to switch from wave soldering to surface mount PCB processing. This product allows for simple reflow soldering and faster PCB assembly.
Applications
- HVAC Equipment and control
- Industrial control
- Security system
- Industrial lighting solutions
- Elevator/Escalator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-16 | |
| Colour | black | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-1.31 mm² | |
| Width | 8.9 mm | |
| Height | 11 mm | |
| Pin number | 7 pole | |
| Grid | 3.5 mm | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
