2213936-5 | TE Connectivity

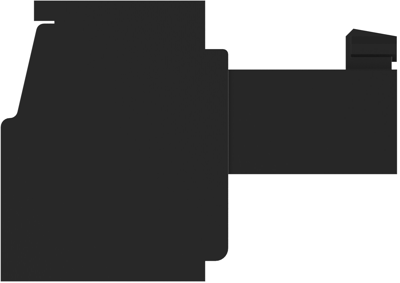

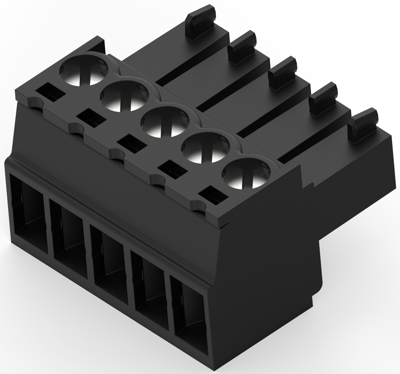

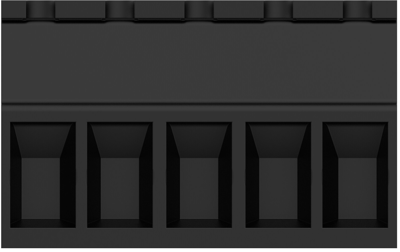

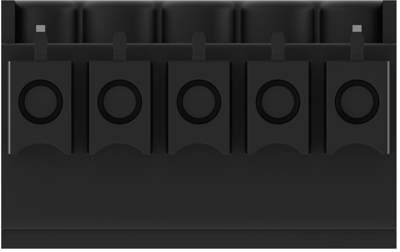

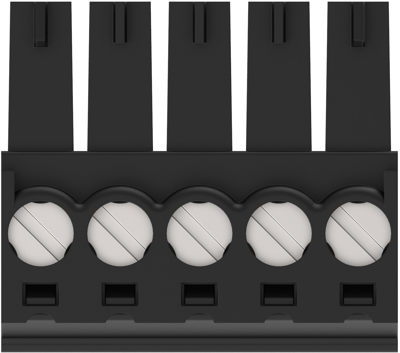

PCB terminal, 5 pole, pitch 3.5 mm, AWG 30-16, 8 A, screw connection, black, 2213936-5
Unit Price (€ / pc.)
3.8675 € *
Available in 5 Days: 3,690 pcs. - if ordered today
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.5938 €
25 pcs.
3.3558 €
50 pcs.
3.0464 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 2213936-5, TE Connectivity
The 2213936-5 is a two-piece pluggable connector solution designed for seeking to switch from wave soldering to surface mount PCB processing. This product allows for simple reflow soldering and faster PCB assembly.
Applications
- HVAC Equipment and control
- Industrial control
- Security system
- Industrial lighting solutions
- Elevator/Escalator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 8.9 mm | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 30-16 | |
| Rated current | 8 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-1.31 mm² | |
| Colour | black | |
| Pin number | 5 pole | |
| Assembly | THT | |
| Height | 11 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
