2-2013519-0 | TE Connectivity

PCB terminal, 10 pole, pitch 7.5 mm, AWG 20-14, 14.5 A, pin, black, 2-2013519-0

Order No.: 71P5531
EAN: 4099891629458
MPN:
2-2013519-0
Series: Dynamic 3000

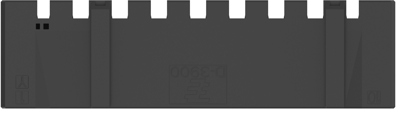

2-2013519-0 TE Connectivity PCB Terminal Blocks Image 1

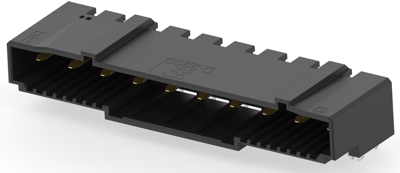

2-2013519-0 TE Connectivity PCB Terminal Blocks Image 2

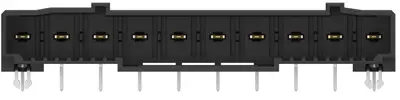

2-2013519-0 TE Connectivity PCB Terminal Blocks Image 3

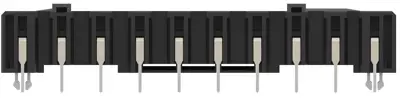

2-2013519-0 TE Connectivity PCB Terminal Blocks Image 4
2-2013519-0 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
5.7715 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
12,120.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
2100 pcs.
5.7715 €

PCB Terminal, 2-2013519-0, TE Connectivity

PCB Terminal block, Header, Wire-to-Board, 10 Position, 7.5 mm Centerline, 1 Row, Side wire entry angle.

Applications

  • Industrial Control
  • Production Equipment
  • Servo Drives
  • Power Distribution
  • Industrial Process Controls
  • Numeric Controllers
Technical specifications
Filter Property Value
Width 20.9 mm
Grid 7.5 mm
Connection pin
AWG cross-section AWG 20-14
Colour black
Cable cross-section 0.5-2 mm²
Rated voltage 600 V
Pin number 10 pole
Height 13 mm
Rated current 14.5 A
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
