2-1986693-0 | TE Connectivity
PCB terminal, 20 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 2-1986693-0
Order No.: 71P5500
EAN: 4099891629397
MPN:
2-1986693-0
Unit Price (€ / pc.)
41.5429 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
41.54 € *
Price list
Quantity
Price per unit*
1 pcs.
41.5429 €
2 pcs.
38.8654 €
5 pcs.
36.5092 €
10 pcs.
33.9388 €
*incl. VAT plus shipping costs
Subject to prior sale

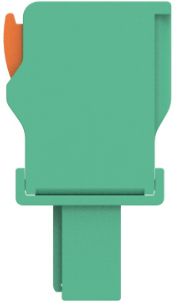

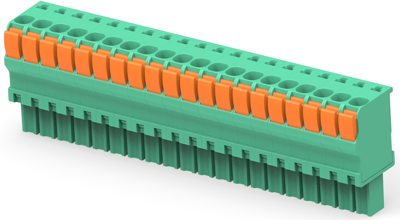

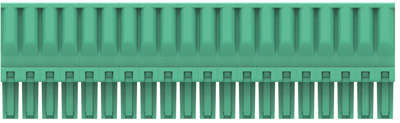

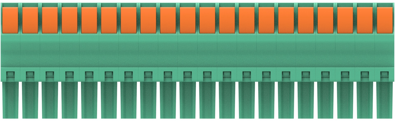

PCB terminal, 2-1986693-0, TE Connectivity
PCB Terminal block, Plug, Wire-to-Board, 20 Position, 3.5 mm Centerline, 1 Row, Top wire entry angle, 30 - 14 AWG Wire size.
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial control
- HVAC Control
- Applications subject to certain types of vibrations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 20.75 mm | |
| Rated current | 9 A | |
| Cable cross-section | 0.05-2 mm² | |
| AWG cross-section | AWG 30-14 | |
| Grid | 3.5 mm | |
| Pin number | 20 pole | |
| Rated voltage | 300 V | |
| Connection | push-in spring connection | |
| Colour | green | |
| Width | 11.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
