1986723-8 | TE Connectivity

PCB terminal, 8 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 1986723-8

Order No.: 71P4115
EAN: 4099891629236
MPN:
1986723-8

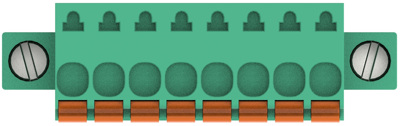

1986723-8 TE Connectivity PCB Terminal Blocks Image 1

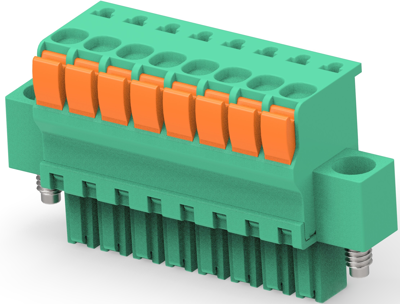

1986723-8 TE Connectivity PCB Terminal Blocks Image 2

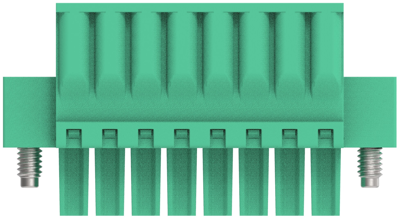

1986723-8 TE Connectivity PCB Terminal Blocks Image 3

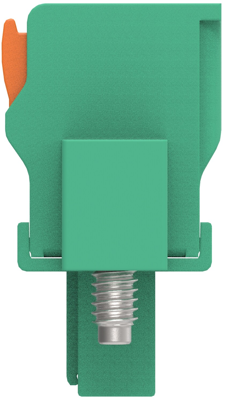

1986723-8 TE Connectivity PCB Terminal Blocks Image 4

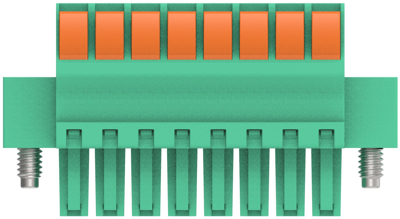

1986723-8 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
10.3649 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
5,182.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
10.3649 €

Spring terminal block, 1986723-8, TE Connectivity

The 1986723-8 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provide flexibility in the design of board layouts in tight spaces.

Features

  • Fast wire connections
  • Mates with industry standard headers on the same centerline spacing

Applications

  • Wire-to-board applications requiring field wiring termination
  • Industrial control
  • HVAC Controls
  • Applications subject to certain types of vibrations
Technical specifications
Filter Property Value
Width 11.65 mm
Grid 3.5 mm
AWG cross-section AWG 30-14
Rated current 9 A
Rated voltage 300 V
Cable cross-section 0.05-2 mm²
Colour green
Pin number 8 pole
Height 20.75 mm
Connection push-in spring connection
Logistics
Property Value
Country of origin IT
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
