1986723-2 | TE Connectivity
PCB terminal, 2 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 1986723-2
Order No.: 71P4109
EAN: 4099891629175
MPN:
1986723-2
Unit Price (€ / pc.)
4.3197 € *
Standard delivery time from the manufacturer is: 14 Weeks

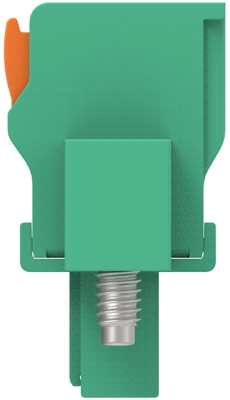

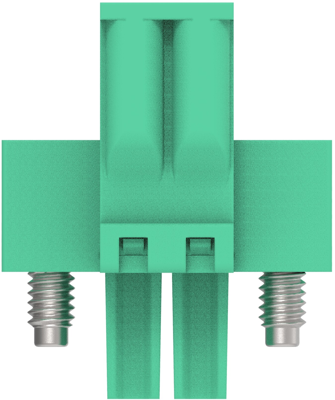

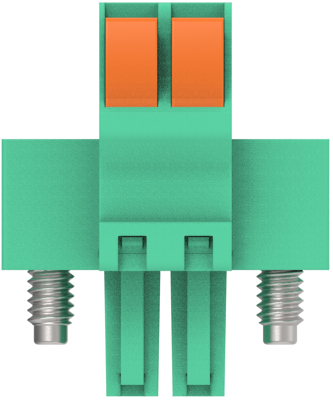

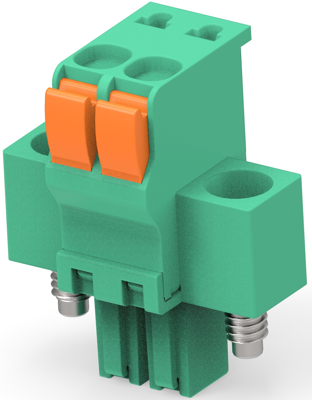

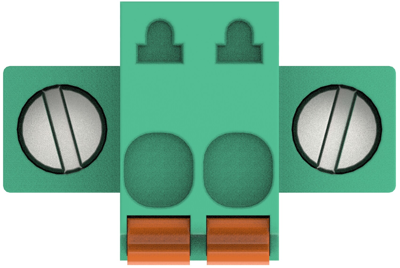

Spring terminal block, 1986723-2, TE Connectivity
The 1986723-2 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provide flexibility in the design of board layouts in tight spaces.
Features
- Fast wire connections
- Mates with industry standard headers on the same centerline spacing
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial control
- HVAC Controls
- Applications subject to certain types of vibrations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 9 A | |
| AWG cross-section | AWG 30-14 | |
| Width | 11.65 mm | |
| Connection | push-in spring connection | |
| Grid | 3.5 mm | |
| Pin number | 2 pole | |
| Rated voltage | 300 V | |
| Height | 20.75 mm | |
| Colour | green | |
| Cable cross-section | 0.05-2 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
