1986722-6 | TE Connectivity
PCB terminal, 6 pole, pitch 3.81 mm, AWG 30-14, 9 A, push-in spring connection, green, 1986722-6
Order No.: 71P4106
EAN: 4099891629168
MPN:
1986722-6
Unit Price (€ / pc.)
13.8873 € *
Available in 5 Days: 490 pcs. - if ordered today
Total Price:
13.89 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8873 €
5 pcs.
13.1733 €
10 pcs.
12.3165 €
25 pcs.
11.2336 €
*incl. VAT plus shipping costs
Subject to prior sale

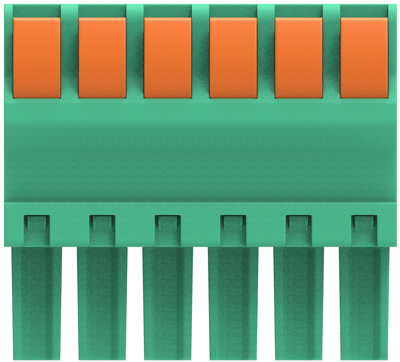

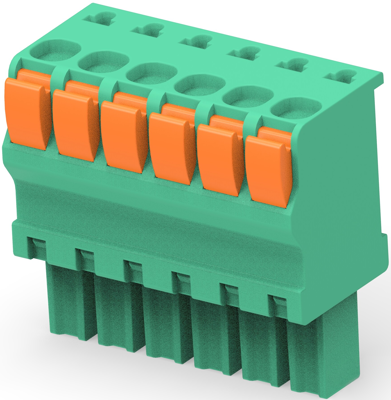

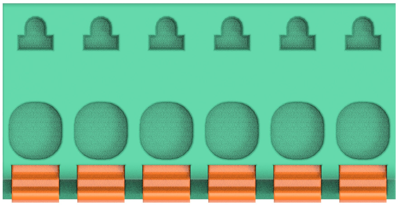

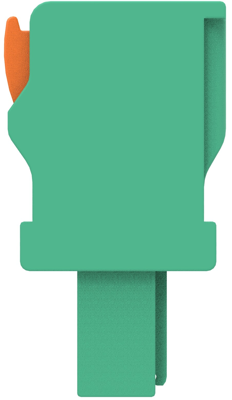

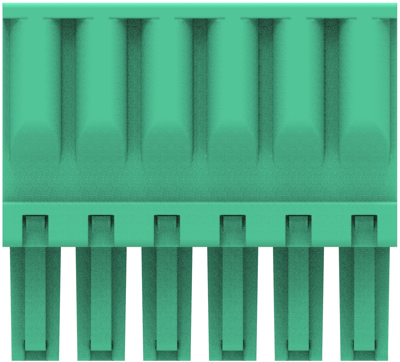

Spring terminal block, 1986722-6, TE Connectivity
The 1986722-6 provides a quick and easy way for installers in the field to mate wires without the use of special tools. This product offers space savings for additional configurations and provide flexibility in the design of board layouts in tight spaces.
Features
- Fast wire connections
- Mates with industry standard headers on the same centerline spacing
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial control
- HVAC Controls
- Applications subject to certain types of vibrations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Colour | green | |
| Cable cross-section | 0.05-2 mm² | |
| Rated current | 9 A | |
| Height | 20.75 mm | |
| Pin number | 6 pole | |
| AWG cross-section | AWG 30-14 | |
| Connection | push-in spring connection | |
| Rated voltage | 300 V | |
| Width | 11.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
