1986718-6 | TE Connectivity
PCB terminal, 6 pole, pitch 3.5 mm, AWG 26-14, 2 A, pin, green, 1986718-6
Order No.: 71P4094
EAN: 4099891629045
MPN:
1986718-6
Unit Price (€ / pc.)
2.0230 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
10.12 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0230 €
10 pcs.
1.8683 €
25 pcs.
1.7493 €
50 pcs.
1.5827 €
*incl. VAT plus shipping costs
Subject to prior sale

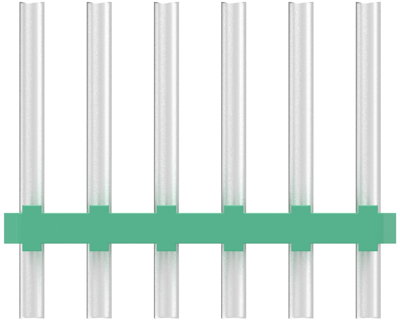

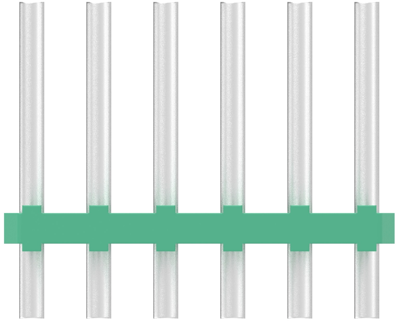

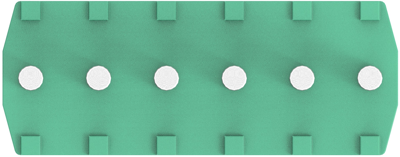

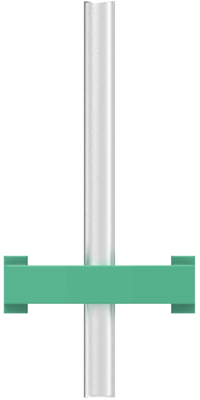

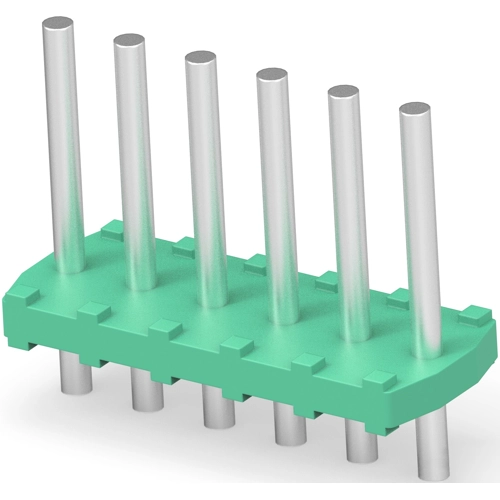

Unshrouded header, 1986718-6, TE Connectivity
The 1986718-6 is allowed for a quick and easy way to insert the wire in signal applications without the use of special tools. This product is customizable, reduces labor cost of installation and provides superior wire retention with proven quality in automation and drives technology or signal controls.
Features
- Compact design
- Fast wire connections
- Male insertion from double directions
- Male in high temperature
Applications
- Automation and Drives technology
- Signal controls
- Control boxes for HVAC and Thermostats
- Controls for sound recordings/ TV or Radio production
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 16.5 mm | |
| Rated current | 2 A | |
| Cable cross-section | 0.5-1.5 mm² | |
| AWG cross-section | AWG 26-14 | |
| Grid | 3.5 mm | |
| Pin number | 6 pole | |
| Rated voltage | 150 V | |
| Assembly | THT | |
| Connection | pin | |
| Colour | green | |
| Width | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
