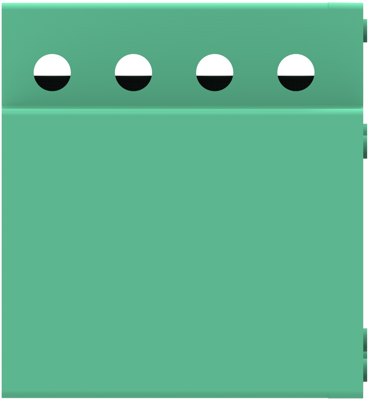

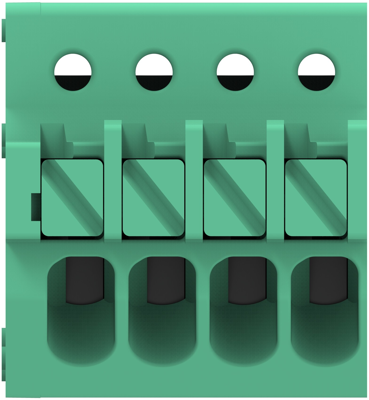

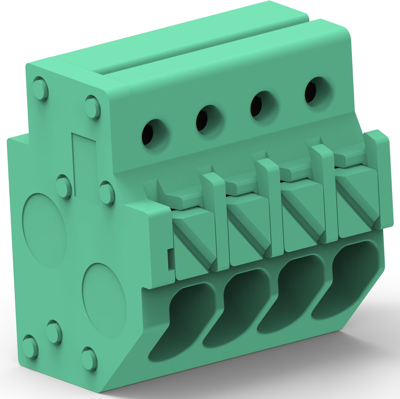

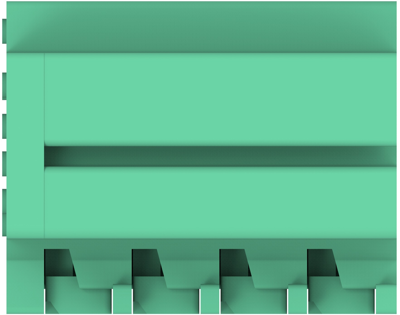

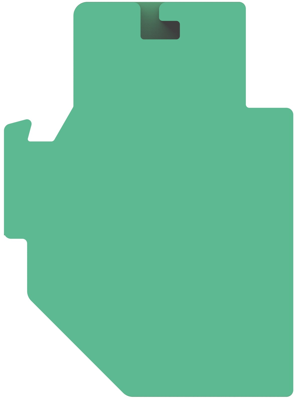

Name: PCB terminal, 5 pole, pitch 3.5 mm, AWG 20-16, 2 A, Push-in spring connection, green, 1986716-5
Brand: TE Connectivity
SKU: 71P4081
Price: 4.11 EUR
Availability: OutOfStock

Description

Plug connector, 1986716-5, TE Connectivity

The 1986716-5 is allowed for a quick and easy way to insert the wire in signal applications without the use of special tools. This product is customizable, reduces labor cost of installation and provides superior wire retention with proven quality in automation and drives technology or signal controls.

Features

Compact design
Fast wire connections
Male insertion from double directions
Male in high temperature

Applications

Automation and Drives technology
Signal controls
Control boxes for HVAC and Thermostats
Controls for sound recordings/ TV or Radio production

	Connection	Push-in spring connection
	AWG cross-section	AWG 20-16
	Width	17 mm
	Colour	green
	Height	12.5 mm
	Cable cross-section	0.5-1.5 mm²
	Rated voltage	150 V
	Rated current	2 A
	Pin number	5 pole
	Grid	3.5 mm

Country of origin	IT
Customs tariff number	85366990

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
