1986712-9 | TE Connectivity

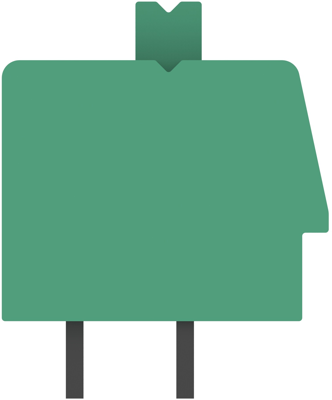

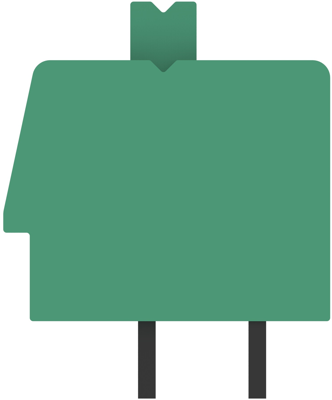

PCB terminal, 9 pole, pitch 5.08 mm, AWG 30-12, 16 A, push-in cage clamp, green, 1986712-9
Order No.: 71P4057
EAN: 4099891628772
MPN:
1986712-9
Unit Price (€ / pc.)
13.2923 € *
Available: 0 pcs.
Available in 5 Days: 262 pcs.
Leadtime: 11 Weeks **
Total Price:
13.29 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2923 €
10 pcs.
12.2213 €
50 pcs.
11.0075 €
100 pcs.
9.9008 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1986712-9, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 9 Position, 5.08 mm Centerline, 2 Row, Side wire entry angle, 30-12 AWG Wire size.
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 16 A | |
| Grid | 5.08 mm | |
| Width | 14.8 mm | |
| Height | 14.45 mm | |
| Contact distance | RM 5.08/5 | |
| Cable cross-section | 0.05-3 mm² | |
| Pin number | 9 pole | |
| Connection | push-in cage clamp | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
