1986712-2 | TE Connectivity
PCB terminal, 2 pole, pitch 5.08 mm, AWG 30-12, 16 A, push-in cage clamp, green, 1986712-2
Order No.: 71P4053
EAN: 4099891628734
MPN:
1986712-2
Unit Price (€ / pc.)
2.9274 € *
Available: 0 pcs.
Available in 5 Days: 300 pcs.
Leadtime: 11 Weeks **
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9274 €
10 pcs.
2.6894 €
50 pcs.
2.4276 €
100 pcs.
2.1777 €
*incl. VAT plus shipping costs
**Subject to prior sale

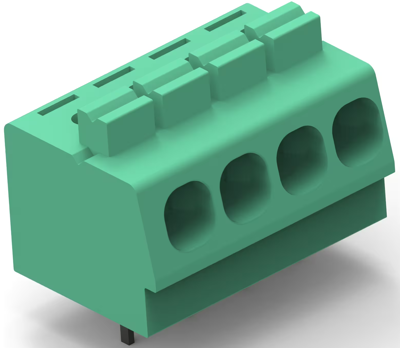

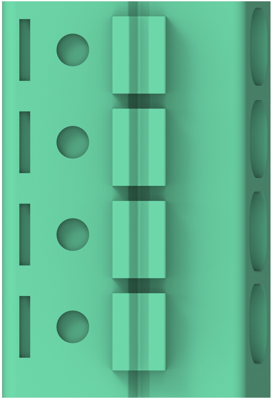

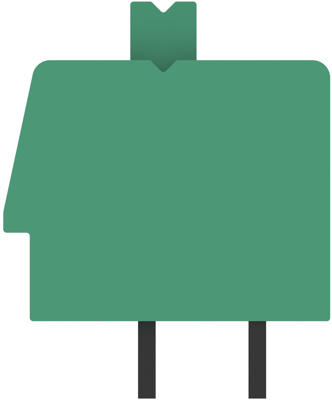

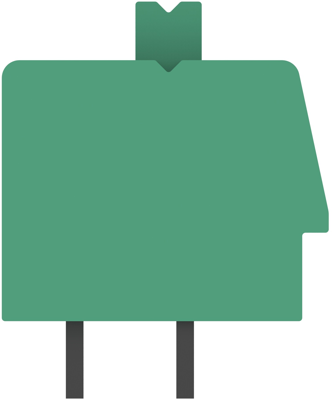

PCB Terminal, 1986712-2, TE Connectivity
PCB Terminal block, Header, Wire-to-Board, 2 Position, 5.08 mm Centerline, 2 Row, Side wire entry angle, 30-12 AWG Wire size.
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 16 A | |
| Grid | 5.08 mm | |
| Width | 14.8 mm | |
| Height | 14.45 mm | |
| Contact distance | RM 5.08/5 | |
| Cable cross-section | 0.05-3 mm² | |
| Pin number | 2 pole | |
| Connection | push-in cage clamp | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
