1986693-5 | TE Connectivity

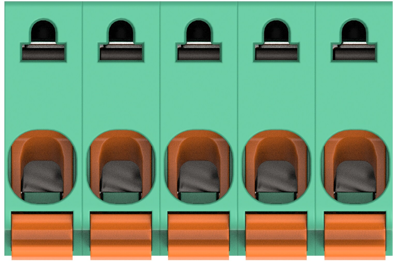

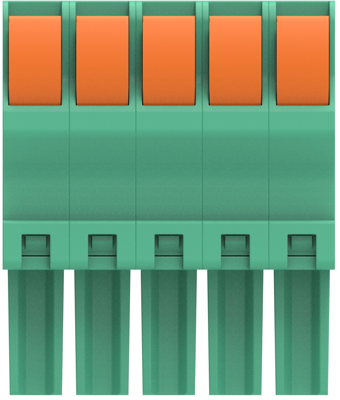

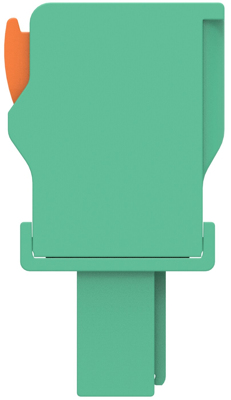

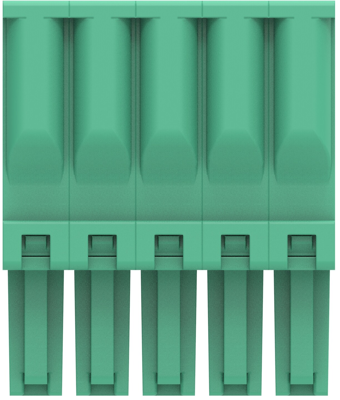

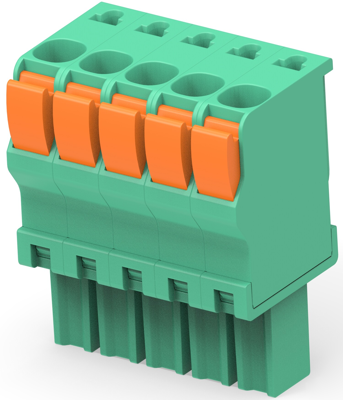

PCB terminal, 5 pole, pitch 3.5 mm, AWG 30-14, 9 A, push-in spring connection, green, 1986693-5
Order No.: 71P4047
EAN: 4099891628673
MPN:
1986693-5
Unit Price (€ / pc.)
7.2947 € *
Available: 0 pcs.
Available in 5 Days: 988 pcs.
Leadtime: 11 Weeks **
Total Price:
7.29 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2947 €
10 pcs.
6.7116 €
50 pcs.
6.0333 €
100 pcs.
5.4264 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plug connector, 1986693-5, TE Connectivity
The 1986693-5 provides a quick and easy way for installers in the field to mate wires without the use of special tools.
Features
- Fast wire connections
- Mates with industry standard headers on the same centerline spacing
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial control
- HVAC Controls
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 30-14 | |
| Rated current | 9 A | |
| Grid | 3.5 mm | |
| Width | 11.65 mm | |
| Height | 20.75 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Pin number | 5 pole | |
| Connection | push-in spring connection | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
