1986375-6 | TE Connectivity
PCB terminal, 6 pole, pitch 3.81 mm, AWG 30-14, 11 A, cage clamp, green, 1986375-6
Order No.: 71P4033
EAN: 4099891628567
MPN:
1986375-6
Unit Price (€ / pc.)
6.7711 € *
Available: 0 pcs.
Available in 5 Days: 933 pcs.
Leadtime: 1 Week **
Total Price:
6.77 € *
Price list
Quantity
Price per unit*
15 pcs.
6.7711 €
65 pcs.
6.3665 €
*incl. VAT plus shipping costs
**Subject to prior sale

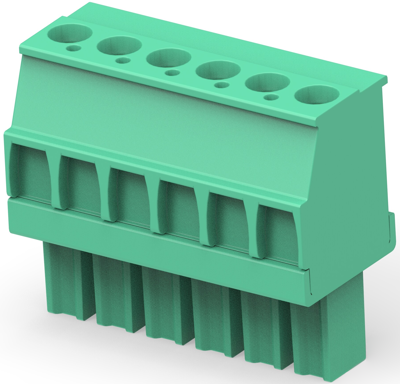

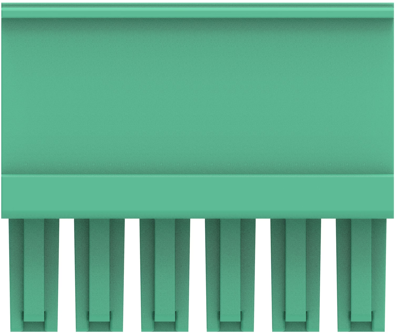

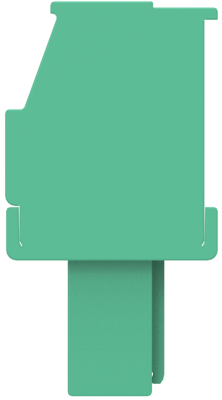

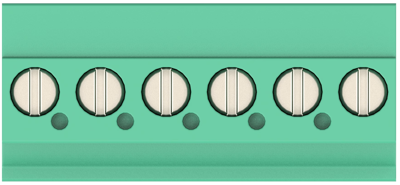

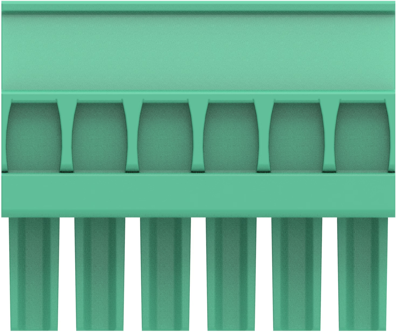

PCB Terminal, 1986375-6, TE Connectivity
The 1986375-6 allows additional configurations of wire access angles to be applied to standard header. This product mates with industry standard headers on the same centerline spacing.
Features
- End to end stackable without loss of centerline spacing
Applications
- Wire-to-board applications requiring field wiring termination
- Industrial Control
- HVAC Controls
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-14 | |
| Width | 10.35 mm | |
| Colour | green | |
| Height | 12.6 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 11 A | |
| Pin number | 6 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
