1986242-8 | TE Connectivity

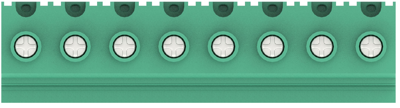

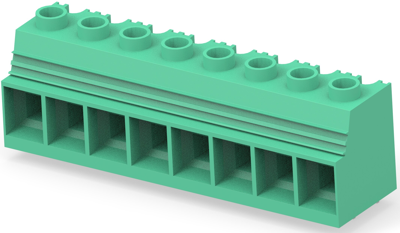

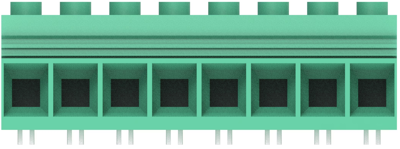

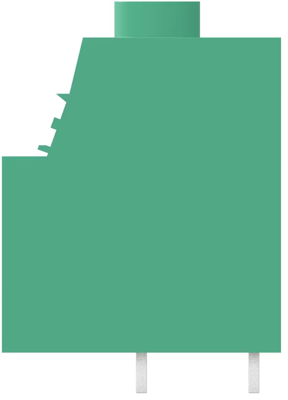

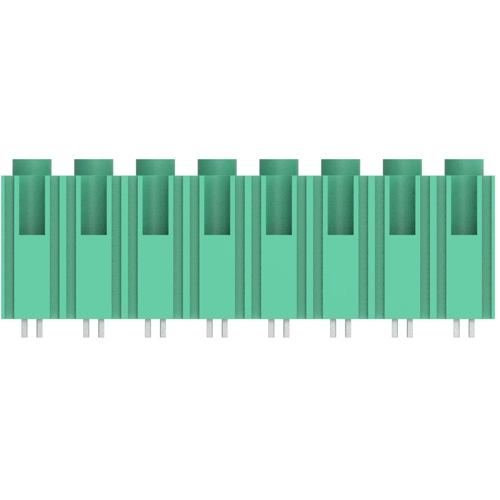

PCB terminal, 8 pole, pitch 15 mm, AWG 20-1, 125 A, cage clamp, green, 1986242-8
Order No.: 71P4008
MPN:
1986242-8
Unit Price (€ / pc.)
35.9380 € *
Available in 5 Days: 61 pcs. - if ordered today
Total Price:
35.94 € *
Price list
Quantity
Price per unit*
1 pcs.
35.9380 €
5 pcs.
34.0816 €
10 pcs.
31.8801 €
25 pcs.
29.0717 €
*incl. VAT plus shipping costs
Subject to prior sale
High power terminal block, 1986242-8, TE Connectivity
The 1986242-8 is a high power terminal block, with one piece design, Printed circuit board mount block on 15.0mm pin spacing, rated for up to 125 amps. Instances where very high current must be brought on the PCB. Including both field and factory wiring applications.
Features
- Screw terminal
- Side wire entry
- Molded to size
Applications
- Power supplies
- Variable frequency drives
- Motor control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 31 mm | |
| Grid | 15 mm | |
| Contact distance | RM 3.8/12.5 | |
| AWG cross-section | AWG 20-1 | |
| Rated current | 125 A | |
| Rated voltage | 600 V | |
| Cable cross-section | 0.5-41 mm² | |
| Colour | green | |
| Pin number | 8 pole | |
| Assembly | THT | |
| Height | 39 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
