1986242-6 | TE Connectivity
PCB terminal, 6 pole, pitch 15 mm, AWG 20-1, 125 A, cage clamp, green, 1986242-6
Order No.: 71P4006
EAN: 4099891628352
MPN:
1986242-6
Unit Price (€ / pc.)
15.8389 € *
Standard delivery time from the manufacturer is: 27 Weeks

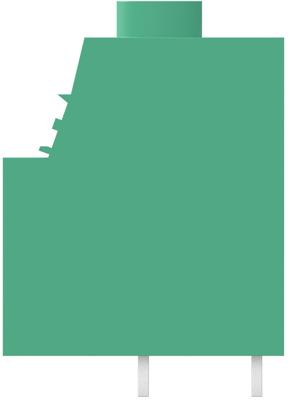

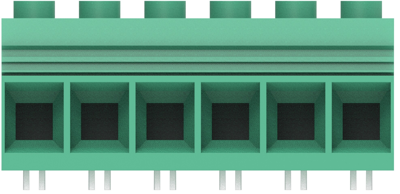

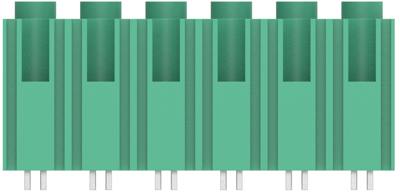

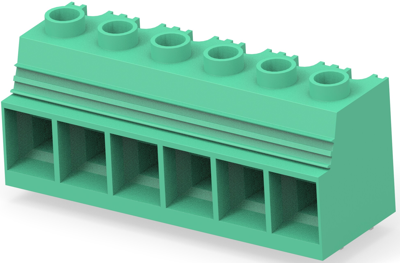

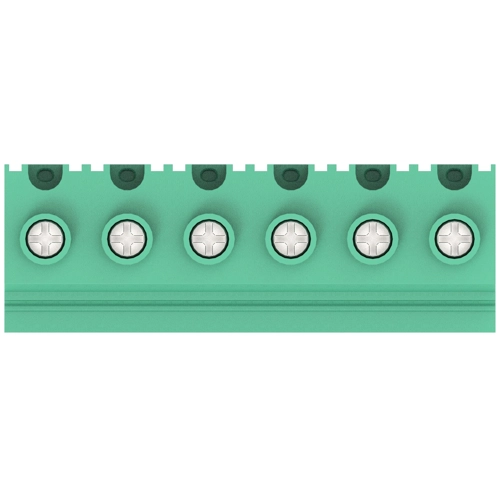

High power terminal block, 1986242-6, TE Connectivity
The 1986242-6 is a high power terminal block, with one piece design, Printed circuit board mount block on 15.0mm pin spacing, rated for up to 125 amps. Instances where very high current must be brought on the PCB. Including both field and factory wiring applications.
Features
- Screw terminal
- Side wire entry
- Molded to size
Applications
- Power supplies
- Variable frequency drives
- Motor control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-1 | |
| Colour | green | |
| Contact distance | RM 3.8/12.5 | |
| Connection | cage clamp | |
| Rated voltage | 600 V | |
| Cable cross-section | 0.5-41 mm² | |
| Width | 31 mm | |
| Height | 39 mm | |
| Assembly | THT | |
| Pin number | 6 pole | |
| Grid | 15 mm | |
| Rated current | 125 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
