1986242-4 | TE Connectivity
PCB terminal, 4 pole, pitch 15 mm, AWG 20-1, 125 A, cage clamp, green, 1986242-4
Order No.: 71P4005
EAN: 4099891628345
MPN:
1986242-4
Unit Price (€ / pc.)
9.1987 € *
Available: 0 pcs.
Available in 5 Days: 1,468 pcs.
Leadtime: 22 Weeks **
Total Price:
229.97 € *
Price list
Quantity
Price per unit*
25 pcs.
9.1987 €
200 pcs.
8.8298 €
*incl. VAT plus shipping costs
**Subject to prior sale

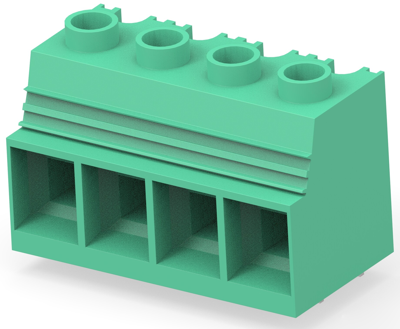

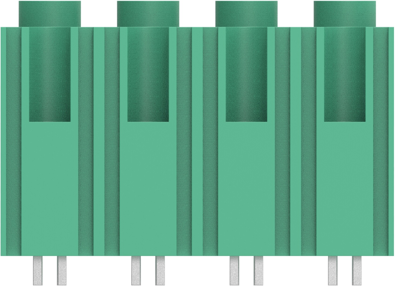

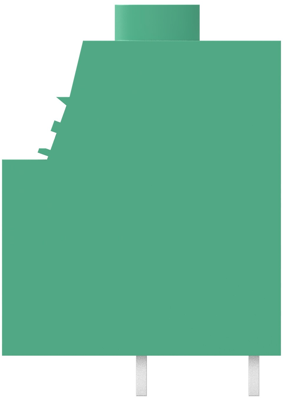

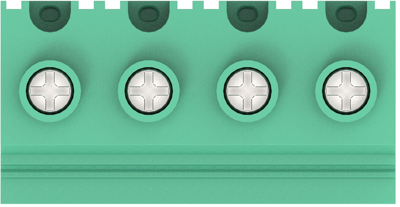

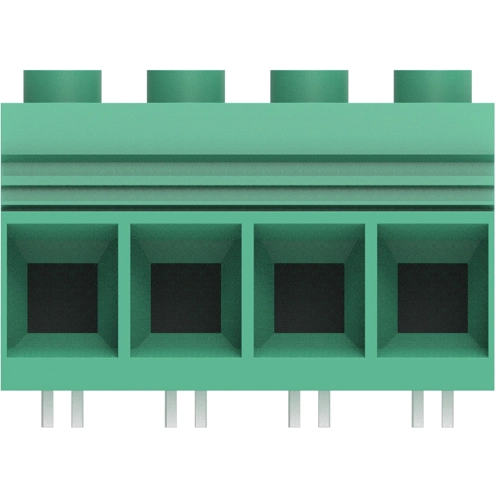

High power terminal block, 1986242-4, TE Connectivity
The 1986242-4 is a high power terminal block, with one piece design, Printed circuit board mount block on 15.0mm pin spacing, rated for up to 125 amps. Instances where very high current must be brought on the PCB. Including both field and factory wiring applications.
Features
- Screw terminal
- Side wire entry
- Molded to size
Applications
- Power supplies
- Variable frequency drives
- Motor control
Technical specifications
| Contact distance | RM 3.8/12.5 | |
| AWG cross-section | AWG 20-1 | |
| Pin number | 4 pole | |
| Rated voltage | 600 V | |
| Cable cross-section | 0.5-41 mm² | |
| Connection | cage clamp | |
| Width | 31 mm | |
| Rated current | 125 A | |
| Grid | 15 mm | |
| Height | 39 mm | |
| Colour | green |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
