1776897-8 | TE Connectivity
PCB terminal, 8 pole, AWG 22 to 12, 20 A, quick connection, black, 1776897-8
Order No.: 71P3492
EAN: 4099891628123
MPN:
1776897-8
Unit Price (€ / pc.)
7.7826 € *
Available in 5 Days: 5,100 pcs. - if ordered today
Total Price:
7.78 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7826 €
10 pcs.
7.2233 €
25 pcs.
6.7473 €
50 pcs.
6.1285 €
*incl. VAT plus shipping costs
Subject to prior sale

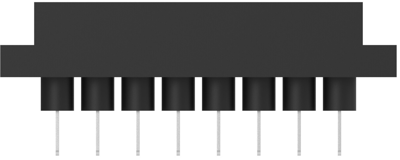

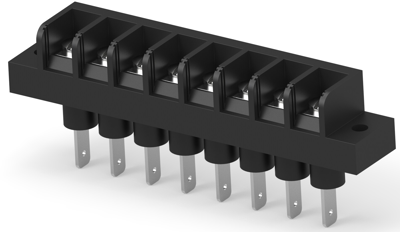

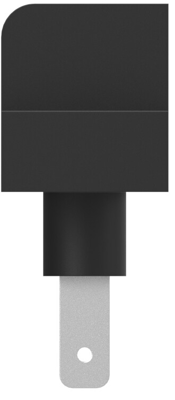

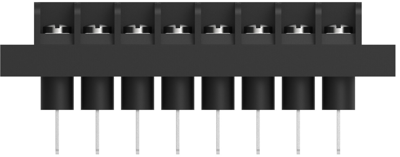

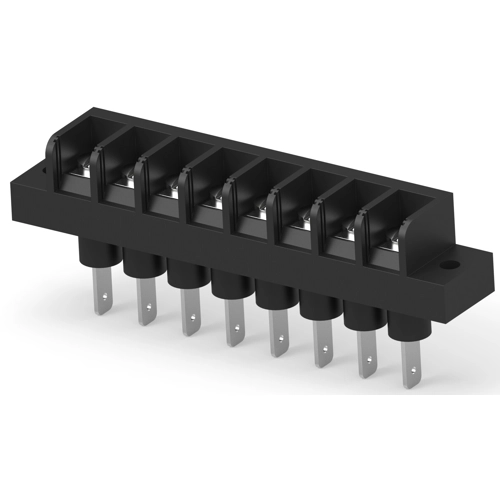

Marking strip, 1776897-8, TE Connectivity
Barrier strip, Tri-Barrier, Quick connect, Wire-to-Panel, 8 Position, 9.53 mm Centerline, 1 Row, 300 V, 22-12 AWG Wire size.
Applications
- Machine controls
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 20 A | |
| Width | 16 mm | |
| Cable cross-section | 0.326-3.31 mm² | |
| Pin number | 8 pole | |
| Connection | quick connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
