1776146-4 | TE Connectivity
PCB terminal, 4 pole, pitch 5 mm, 15 A, pin, black, 1776146-4
Order No.: 71P3435
EAN: 4099891627935
MPN:
1776146-4
Unit Price (€ / pc.)
1.1424 € *
Available in 5 Days: 5,153 pcs. - if ordered today
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
1.0591 €
25 pcs.
0.9877 €
50 pcs.
0.9044 €
*incl. VAT plus shipping costs
Subject to prior sale

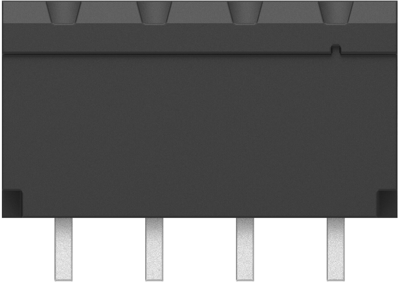

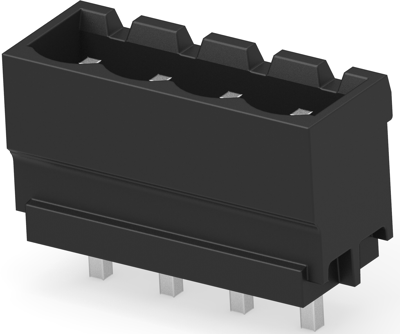

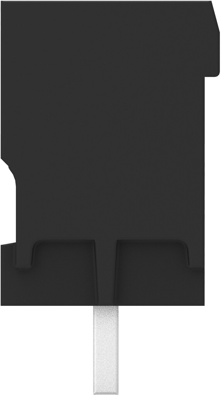

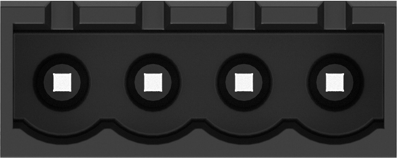

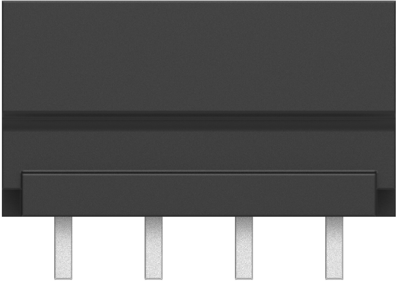

PCB Terminal, 1776146-4, TE Connectivity
The 1776146-4 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection | pin | |
| Rated voltage | 300 V | |
| Width | 8.65 mm | |
| Height | 12 mm | |
| Assembly | THT | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
