1776136-2 | TE Connectivity
PCB terminal, 2 pole, pitch 3.5 mm, 11 A, pin, black, 1776136-2
Order No.: 71P3434
EAN: 4099891627928
MPN:
1776136-2
Unit Price (€ / pc.)
1.428 € *
Standard delivery time from the manufacturer is: 14 Weeks

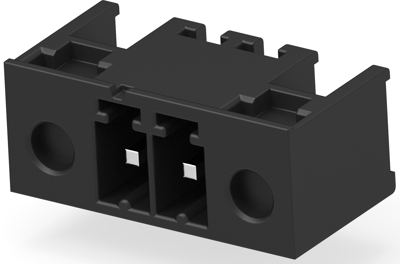

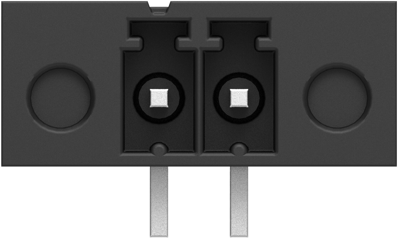

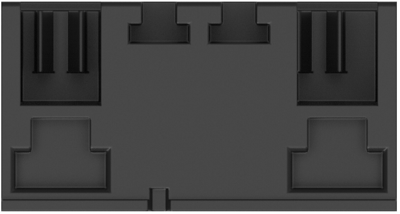

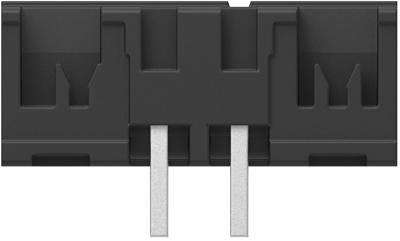

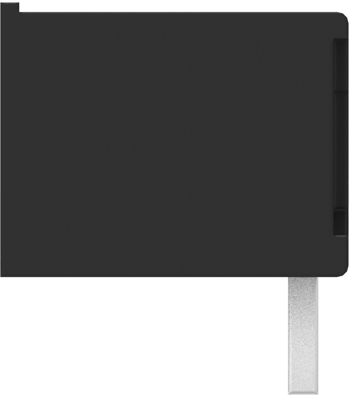

PCB Terminal, 1776136-2, TE Connectivity
The 1776136-2 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Grid | 3.5 mm | |
| Rated current | 11 A | |
| Rated voltage | 300 V | |
| Width | 8 mm | |
| Height | 7.25 mm | |
| Connection | pin | |
| Assembly | THT | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
