1776130-4 | TE Connectivity
PCB terminal, 4 pole, pitch 3.5 mm, AWG 30-14, 11 A, pin, black, 1776130-4
Order No.: 71P3431
EAN: 4099891627911
MPN:
1776130-4
Unit Price (€ / pc.)
1.8088 € *
Available in 5 Days: 1,479 pcs. - if ordered today
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
10 pcs.
1.6422 €
50 pcs.
1.4875 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale

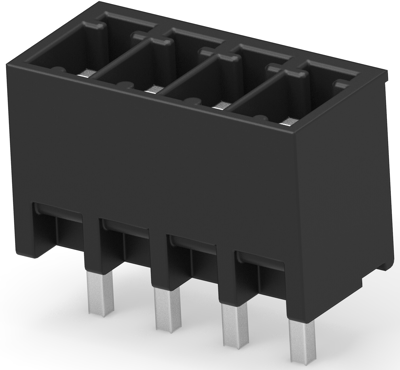

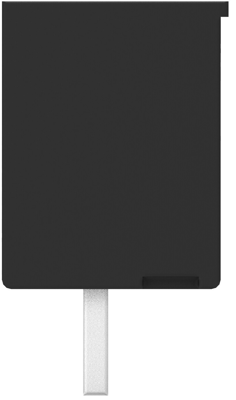

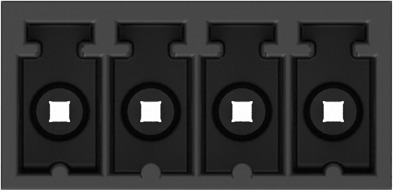

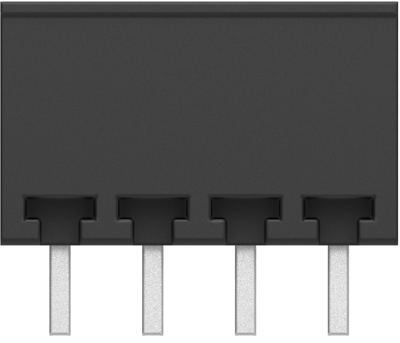

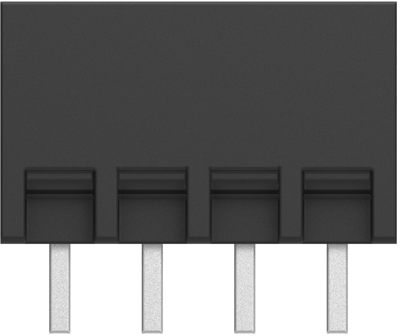

PCB Terminal, 1776130-4, TE Connectivity
The 1776130-4 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Colour | black | |
| AWG cross-section | AWG 30-14 | |
| Rated current | 11 A | |
| Grid | 3.5 mm | |
| Width | 9.2 mm | |
| Height | 7.25 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Pin number | 4 pole | |
| Connection | pin | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
