1776119-5 | TE Connectivity

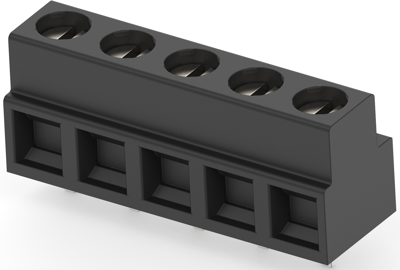

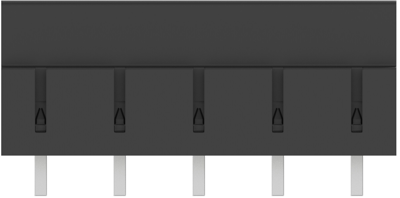

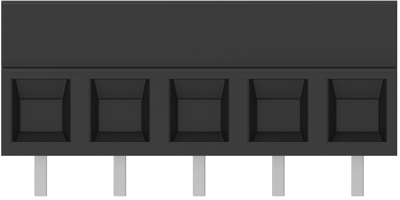

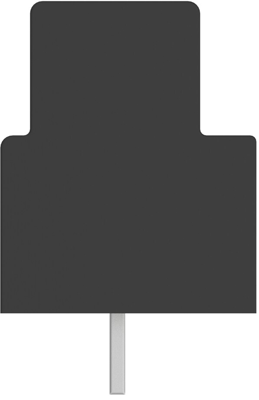

PCB terminal, 5 pole, pitch 5.08 mm, AWG 30-16, 10 A, cage clamp, black, 1776119-5
Order No.: 71P3430
EAN: 4099891627904
MPN:
1776119-5
Unit Price (€ / pc.)
2.9988 € *
Available in 5 Days: 582 pcs. - if ordered today
Total Price:
3.00 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9988 €
10 pcs.
2.7846 €
25 pcs.
2.5942 €
50 pcs.
2.3562 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1776119-5, TE Connectivity
The 1776119-5 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 10 mm | |
| Rated current | 10 A | |
| Cable cross-section | 0.05-1.4 mm² | |
| AWG cross-section | AWG 30-16 | |
| Grid | 5.08 mm | |
| Pin number | 5 pole | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Connection | cage clamp | |
| Colour | black | |
| Width | 8.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
