1776112-4 | TE Connectivity

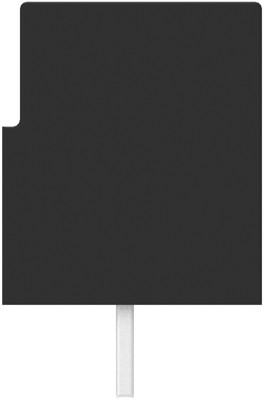

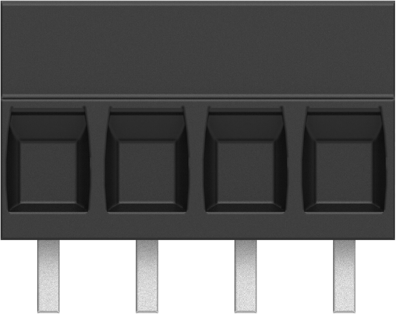

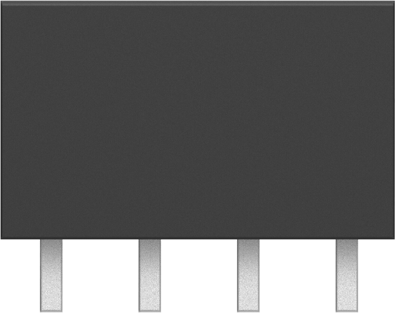

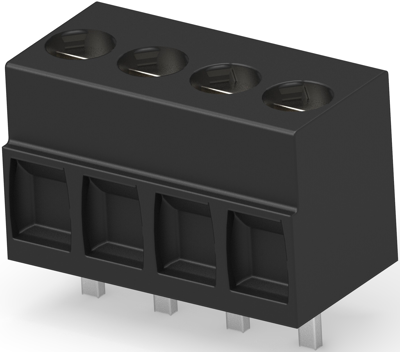

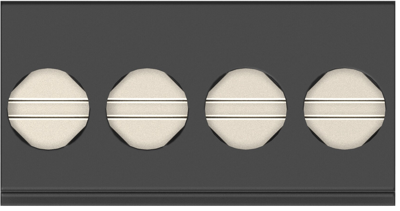

PCB terminal, 4 pole, pitch 3.5 mm, AWG 28-16, 12 A, cage clamp, black, 1776112-4
Order No.: 71P3426
MPN:
1776112-4
Unit Price (€ / pc.)
1.6660 € *
Available in 5 Days: 3,247 pcs. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5470 €
25 pcs.
1.4518 €
50 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1776112-4, TE Connectivity
The 1776112-4 is supplied with open screws which shortens the time for connection. The double captive screw system guards against lost screws.
Applications
- Industrial Control
- HVAC equipment and controls
- Communications equipment
- Test & measurement
- Fire & security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-16 | |
| Colour | black | |
| Connection | cage clamp | |
| Rated voltage | 150 V | |
| Cable cross-section | 0.08-1.4 mm² | |
| Width | 7.3 mm | |
| Height | 8.5 mm | |
| Assembly | THT | |
| Pin number | 4 pole | |
| Grid | 3.5 mm | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
