1546833-3 | TE Connectivity

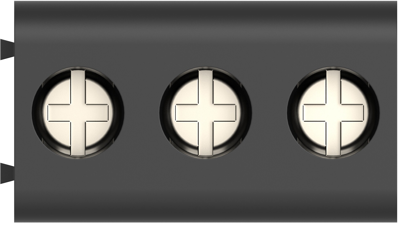

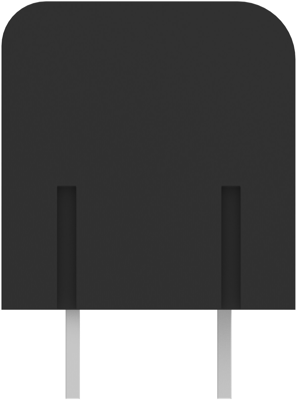

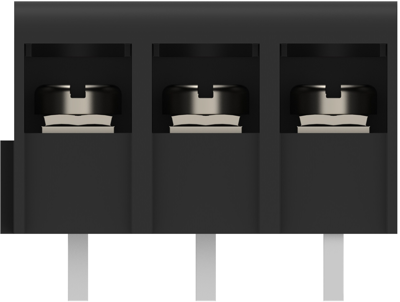

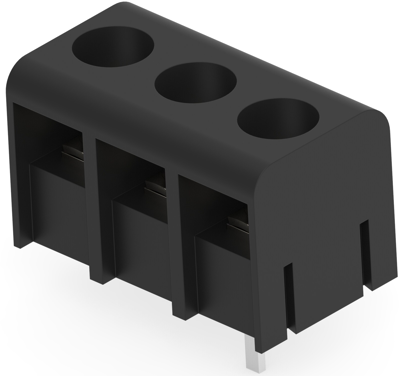

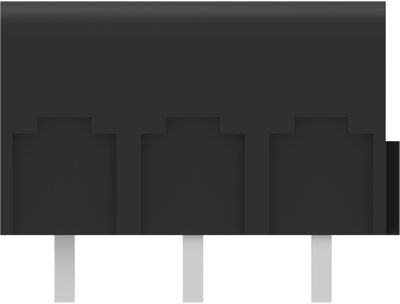

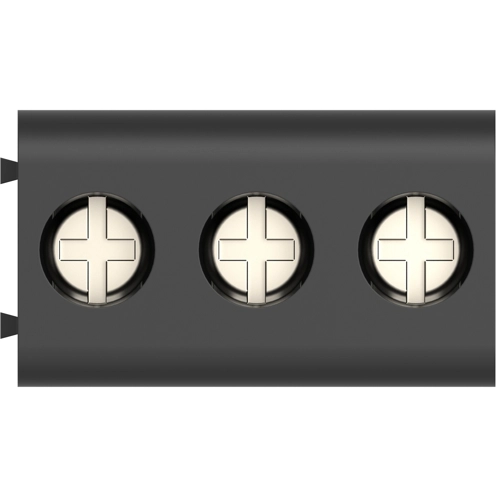

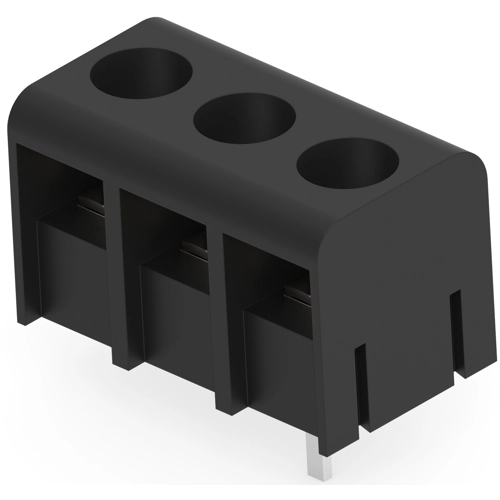

PCB terminal, 3 pole, AWG 22 to 14, 15 A, screw connection, black, 1546833-3
Unit Price (€ / pc.)
2.5228 € *
Available in 5 Days: 1,482 pcs. - if ordered today
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.3324 €
25 pcs.
2.1777 €
50 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB terminal, 1546833-3, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 3 Position, 9.53 mm Centerline, 1 Row, 300 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Height | 7.49 mm | |
| Colour | black | |
| Rated current | 15 A | |
| Cable cross-section | 0.3-2.0 mm² | |
| Connection | screw connection | |
| Assembly | THT | |
| AWG cross-section | AWG 22 to 14 | |
| Width | 16.51 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
