1546551-4 | TE Connectivity

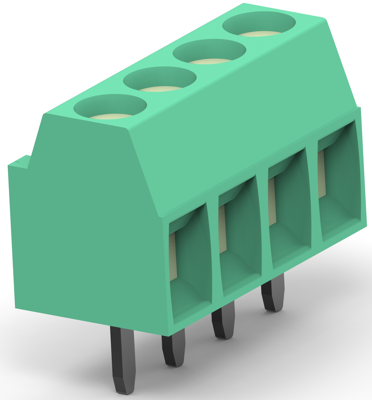

PCB terminal, 4 pole, pitch 3.5 mm, AWG 28-16, 12 A, screw connection, green, 1546551-4
Order No.: 38P7476
EAN: 4099891039448
MPN:
1546551-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: 11 Weeks
PCB terminal block, 1546551-4, TE Connectivity
Wire Protection: With, Terminal Block Connector Type: Header, Connector System: Wire-to-Board, Connector & Contact Terminates To: Printed Circuit Board, Threaded Flange: Without, Number of Positions: 4, Number of Rows: 1, Wire Entry Angle: Side, Current Rating (Max): 12 A, Voltage Rating: 300 VAC, Contact Base Material: Copper Alloy, Contact Current Rating (Max): 12 A, Screw Flange: With, Connector Mounting Type: Board Mount, Housing Material: PA 66, Centerline (Pitch): 3.5 mm, PCB Tail Length: 3.5 mm, Wire Size: 28 – 16 AWG, Wire Size: .08 – 1.4 mm², Operating Temperature Range: -40 – 110 °C, Circuit Application: Power & Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Grid | 3.5 mm | |
| Cable cross-section | 0.8-1.4 mm² | |
| AWG cross-section | AWG 28-16 | |
| Rated current | 12 A | |
| Rated voltage | 300 V | |
| Connection | screw connection | |
| Assembly | THT | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
