1546213-6 | TE Connectivity
PCB terminal, 6 pole, pitch 5.08 mm, 15 A, pin, gray, 1546213-6
Order No.: 71P2324
EAN: 4099891627652
MPN:
1546213-6
Unit Price (€ / pc.)
2.4514 € *
Available in 5 Days: 1,533 pcs. - if ordered today
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.2729 €
25 pcs.
2.1182 €
50 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale

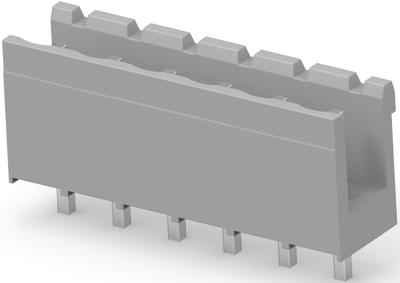

PCB Terminal, 1546213-6, TE Connectivity
The 1546213-6 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| Height | 12 mm | |
| Colour | gray | |
| Assembly | THT | |
| Width | 8.35 mm | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| Connection | pin | |
| Pin number | 6 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
