1546173-3 | TE Connectivity

PCB terminal, 3 pole, pitch 5 mm, AWG 30-14, 12 A, cage clamp, green, 1546173-3

Order No.: 71P2321
EAN: 4099891627638
MPN:
1546173-3

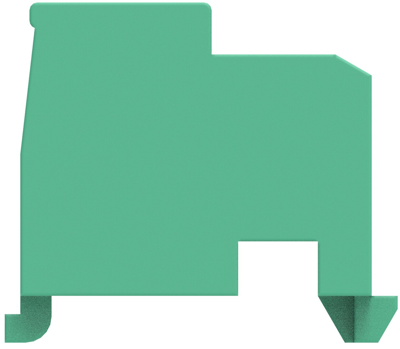

1546173-3 TE Connectivity PCB Terminal Blocks Image 1

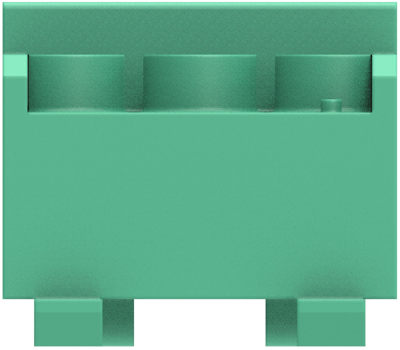

1546173-3 TE Connectivity PCB Terminal Blocks Image 2

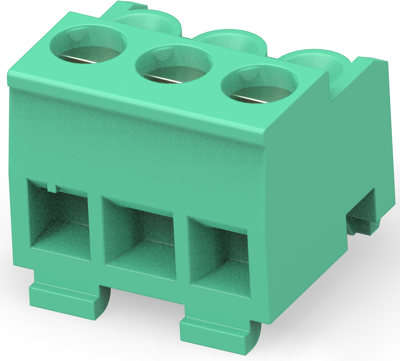

1546173-3 TE Connectivity PCB Terminal Blocks Image 3

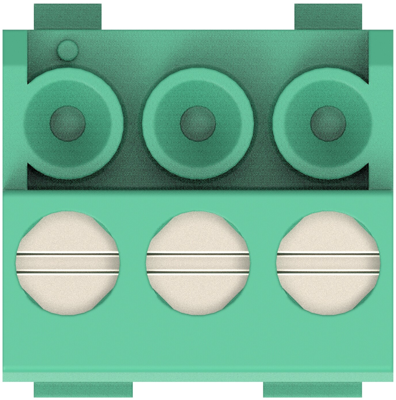

1546173-3 TE Connectivity PCB Terminal Blocks Image 4

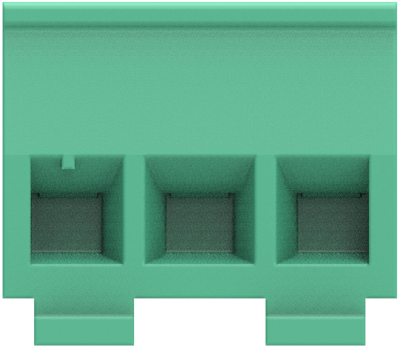

1546173-3 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
2.5228 € *
Available in 5 Days: 479 pcs. - if ordered today
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
2.3324 €
25 pcs.
2.1777 €
50 pcs.
1.9873 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Terminal, 1546173-3, TE Connectivity

The 1546173-3 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.

Features

  • Built-in interlocks to assemble higher number of ways
  • Polarization keys for easier mating
  • Captive screw
Technical specifications
Filter Property Value
Height 15.1 mm
Rated current 12 A
Cable cross-section 0.05-2 mm²
AWG cross-section AWG 30-14
Grid 5 mm
Pin number 3 pole
Rated voltage 300 V
Assembly THT
Connection cage clamp
Colour green
Width 11.3 mm
Logistics
Property Value
Customs tariff number 85366990
Country of origin IT
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
