1546109-2 | TE Connectivity

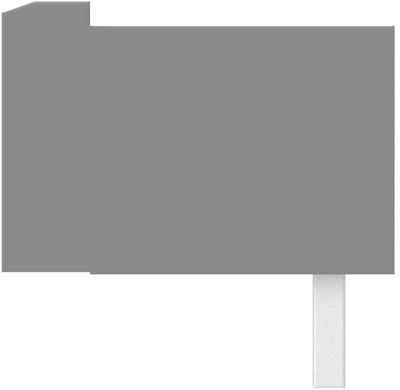

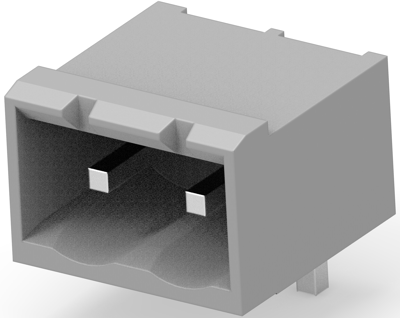

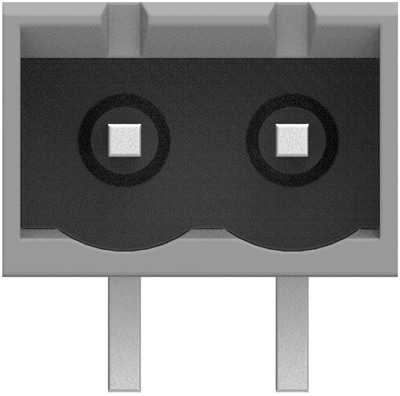

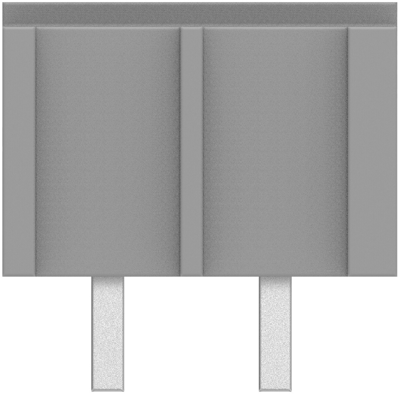

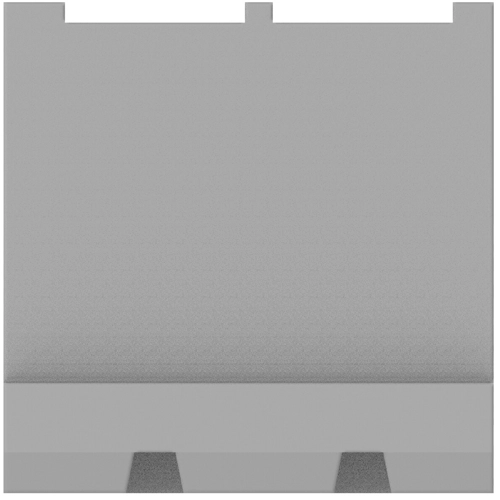

PCB terminal, 2 pole, pitch 5.08 mm, 15 A, pin, gray, 1546109-2
Order No.: 71P2311
EAN: 4099891627560
MPN:
1546109-2
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
0.52 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5236 €
10 pcs.
0.4879 €
25 pcs.
0.4522 €
50 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1546109-2, TE Connectivity
The 1546109-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Connection | pin | |
| Rated voltage | 300 V | |
| Width | 12 mm | |
| Height | 8.35 mm | |
| Assembly | THT | |
| Pin number | 2 pole | |
| Grid | 5.08 mm | |
| Rated current | 15 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
