1546074-2 | TE Connectivity

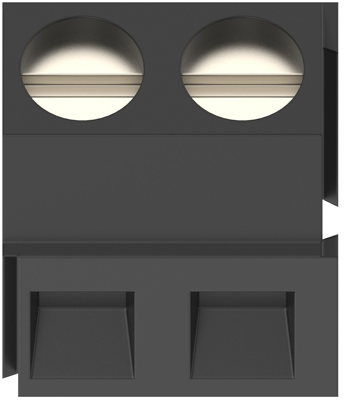

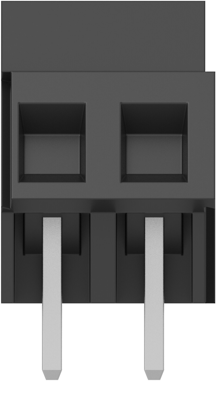

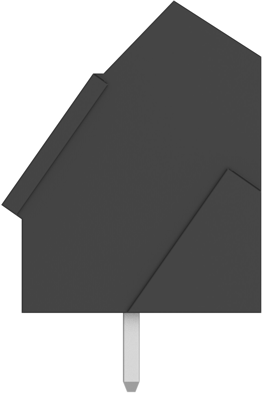

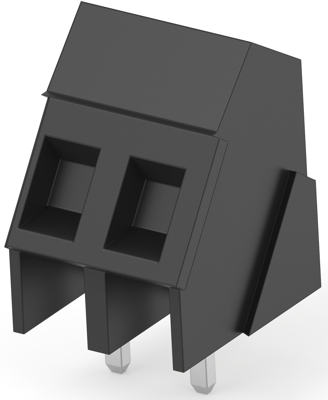

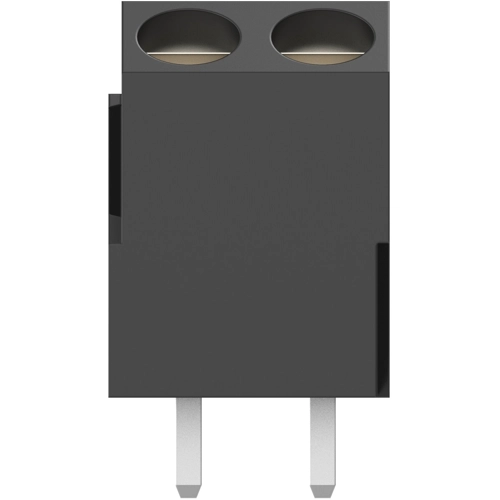

PCB terminal, 2 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 1546074-2
Order No.: 71P2304
EAN: 4099891627508
MPN:
1546074-2
Unit Price (€ / pc.)
1.0472 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0472 €
10 pcs.
0.9639 €
25 pcs.
0.9044 €
50 pcs.
0.8211 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1546074-2, TE Connectivity
The 1546074-2 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 12.5 mm | |
| Grid | 5.08 mm | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-3 mm² | |
| Colour | black | |
| Pin number | 2 pole | |
| Height | 15 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
