1546073-4 | TE Connectivity
PCB terminal, 4 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 1546073-4
Order No.: 71P2303
EAN: 4099891627492
MPN:
1546073-4
Unit Price (€ / pc.)
2.9036 € *
Available in 5 Days: 509 pcs. - if ordered today
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.7013 €
25 pcs.
2.5228 €
50 pcs.
2.2848 €
*incl. VAT plus shipping costs
Subject to prior sale

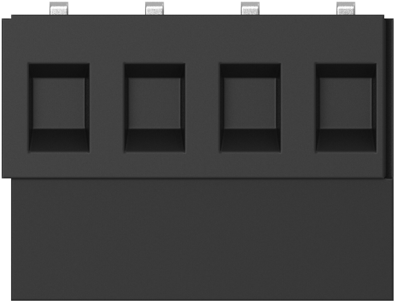

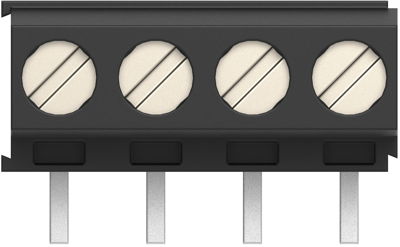

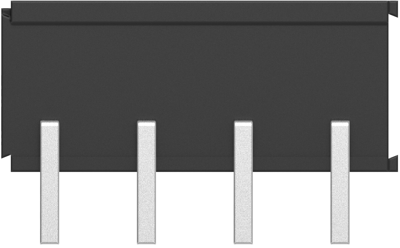

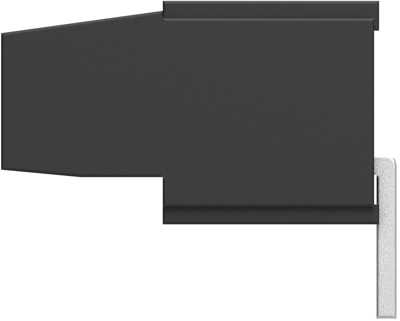

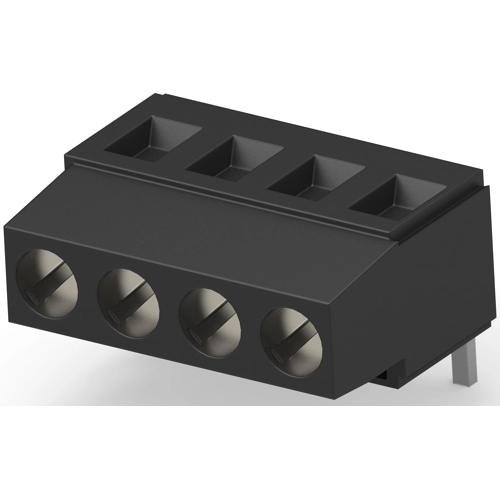

PCB Terminal, 1546073-4, TE Connectivity
The 1546073-4 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Connection | cage clamp | |
| AWG cross-section | AWG 30-12 | |
| Rated voltage | 300 V | |
| Height | 9 mm | |
| Assembly | THT | |
| Width | 15.5 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Cable cross-section | 0.05-3 mm² | |
| Rated current | 17.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
