1546018-9 | TE Connectivity
PCB terminal, 9 pole, pitch 5 mm, AWG 30-12, 12 A, cage clamp, black, 1546018-9
Order No.: 71P2297
MPN:
1546018-9
Unit Price (€ / pc.)
7.6398 € *
Available in 5 Days: 245 pcs. - if ordered today
Total Price:
7.64 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6398 €
5 pcs.
7.2471 €
10 pcs.
6.7711 €
25 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale

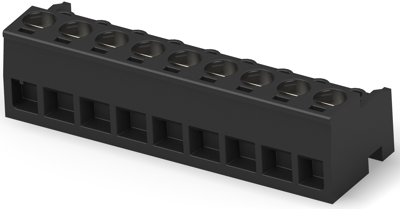

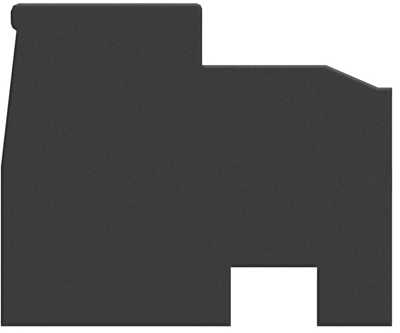

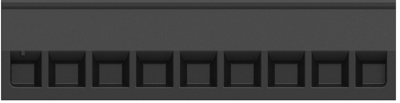

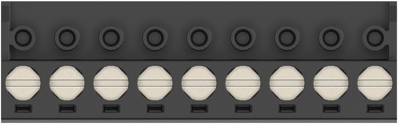

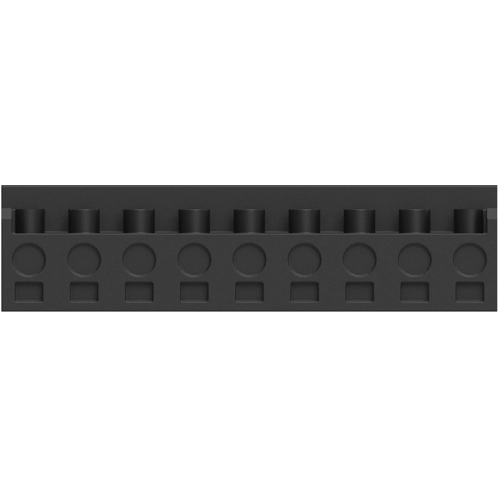

PCB Terminal, 1546018-9, TE Connectivity
The 1546018-9 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | cage clamp | |
| Width | 13.9 mm | |
| Colour | black | |
| Pin number | 9 pole | |
| AWG cross-section | AWG 30-12 | |
| Rated voltage | 300 V | |
| Height | 11.5 mm | |
| Rated current | 12 A | |
| Cable cross-section | 0.05-3 mm² | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
