1437653-1 | TE Connectivity
PCB terminal, 6 pole, AWG 22 to 12, 25 A, screw connection, black, 1437653-1
Order No.: 71P2121
EAN: 4099891627386
MPN:
1437653-1
Unit Price (€ / pc.)
4.9623 € *
Available in 5 Days: 226 pcs. - if ordered today

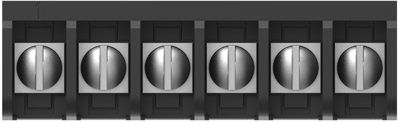

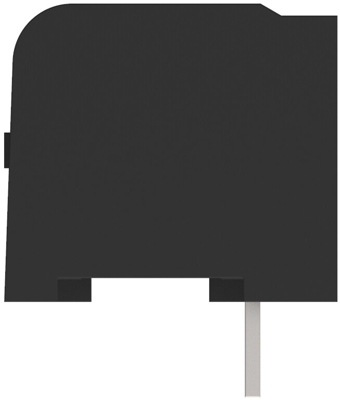

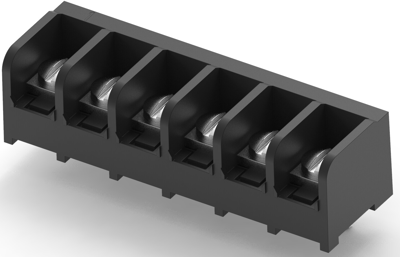

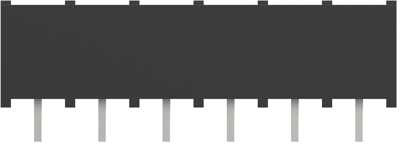

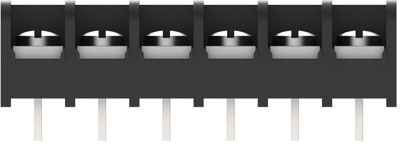

PCB terminal, 1437653-1, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 6 Position, 9.53 mm Centerline, 1 Row, 600 V / 300 V, 22 - 12 AWG Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 17.78 mm | |
| AWG cross-section | AWG 22 to 12 | |
| Rated current | 25 A | |
| Cable cross-section | 0.326-3.31 mm² | |
| Colour | black | |
| Pin number | 6 pole | |
| Assembly | THT | |
| Height | 15.88 mm | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
