1-796949-8 | TE Connectivity
PCB terminal, 18 pole, pitch 5.08 mm, AWG 30-12, 17.5 A, cage clamp, black, 1-796949-8
Order No.: 71P3540
EAN: 4099891628321
MPN:
1-796949-8
Unit Price (€ / pc.)
14.8512 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
14.85 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8512 €
10 pcs.
13.7921 €
25 pcs.
12.8758 €
50 pcs.
11.6977 €
*incl. VAT plus shipping costs
Subject to prior sale

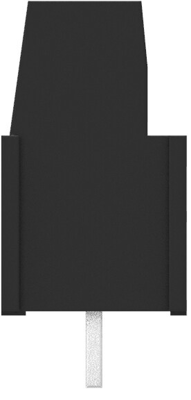

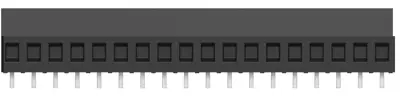

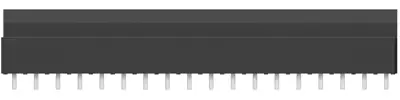

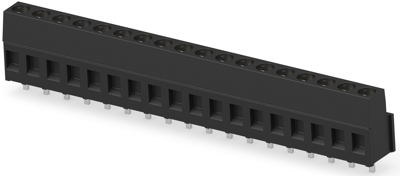

PCB Terminal, 1-796949-8, TE Connectivity
The 1-796949-8 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.05-3 mm² | |
| Height | 15.2 mm | |
| Connection | cage clamp | |
| Colour | black | |
| Assembly | THT | |
| Rated current | 17.5 A | |
| Width | 9 mm | |
| Pin number | 18 pole | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| AWG cross-section | AWG 30-12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
