1-796681-2 | TE Connectivity

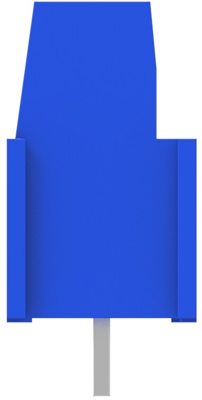

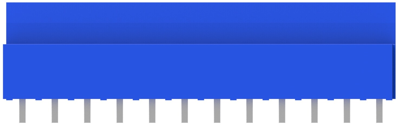

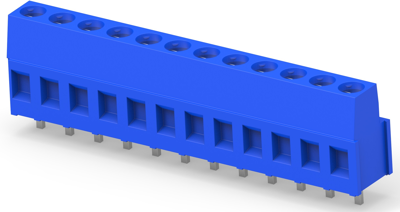

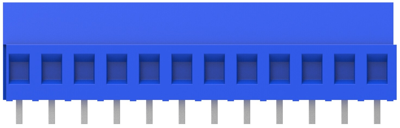

PCB terminal, 12 pole, pitch 5 mm, AWG 30-12, 17.5 A, cage clamp, blue, 1-796681-2
Order No.: 71P3531
EAN: 4099891628260
MPN:
1-796681-2
Unit Price (€ / pc.)
4.8195 € *
Available: 0 pcs.
Available in 5 Days: 600 pcs.
Leadtime: 1 Week **
Total Price:
4.82 € *
Price list
Quantity
Price per unit*
20 pcs.
4.8195 €
90 pcs.
4.5339 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1-796681-2, TE Connectivity
The 1-796681-2 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-12 | |
| Width | 9 mm | |
| Colour | blue | |
| Height | 15.2 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 17.5 A | |
| Pin number | 12 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
