1-796641-2 | TE Connectivity

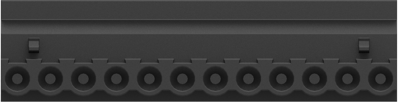

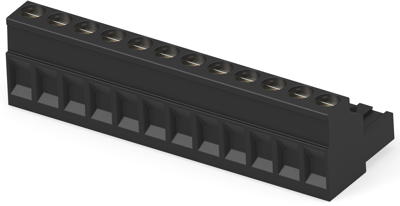

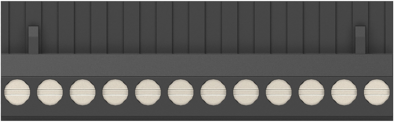

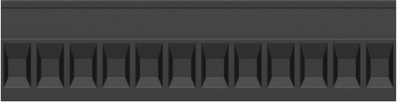

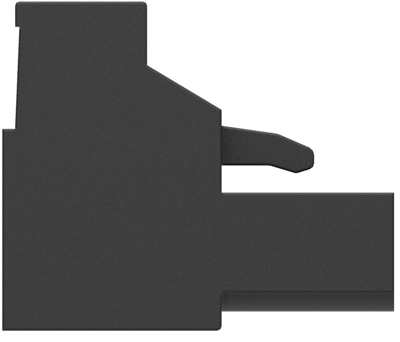

PCB terminal, 12 pole, pitch 5 mm, AWG 30-12, 15 A, cage clamp, black, 1-796641-2
Order No.: 71P3529
EAN: 4099891628246
MPN:
1-796641-2
Unit Price (€ / pc.)
6.8425 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Terminal, 1-796641-2, TE Connectivity
The 1-796641-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 15.5 mm | |
| Grid | 5 mm | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 15 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-3 mm² | |
| Colour | black | |
| Pin number | 12 pole | |
| Assembly | THT | |
| Height | 18.4 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
