1-796640-2 | TE Connectivity
PCB terminal, 12 pole, pitch 5 mm, AWG 30-12, 15 A, cage clamp, green, 1-796640-2
Order No.: 71P3527
EAN: 4099891628222
MPN:
1-796640-2
Unit Price (€ / pc.)
12.1023 € *
Available in 5 Days: 845 pcs. - if ordered today
Total Price:
12.10 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1023 €
10 pcs.
11.2455 €
25 pcs.
10.4958 €
50 pcs.
9.5438 €
*incl. VAT plus shipping costs
Subject to prior sale

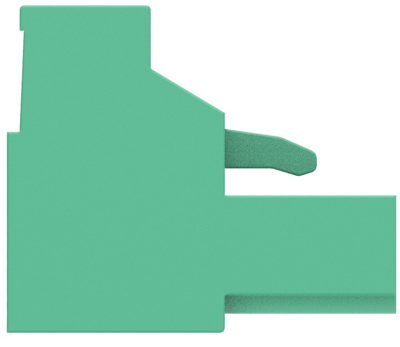

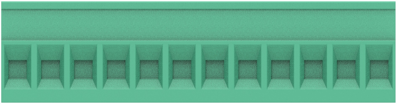

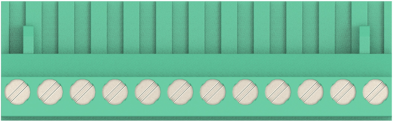

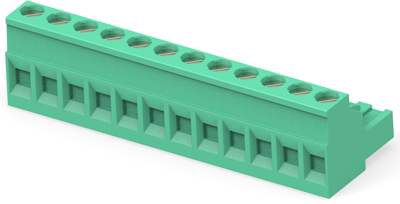

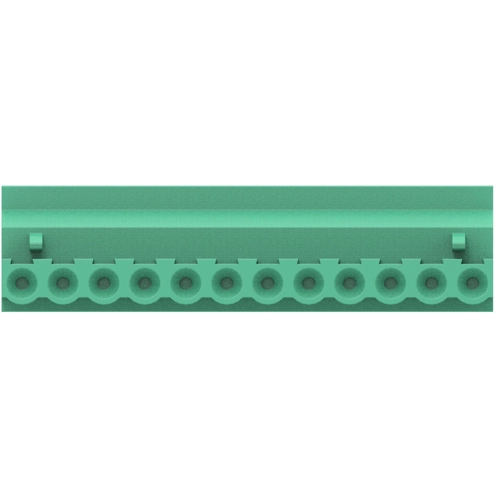

PCB Terminal, 1-796640-2, TE Connectivity
The 1-796640-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Width | 15.5 mm | |
| Cable cross-section | 0.05-3 mm² | |
| AWG cross-section | AWG 30-12 | |
| Pin number | 12 pole | |
| Connection | cage clamp | |
| Height | 18.4 mm | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
