1-796640-0 | TE Connectivity

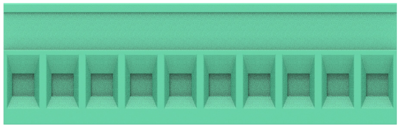

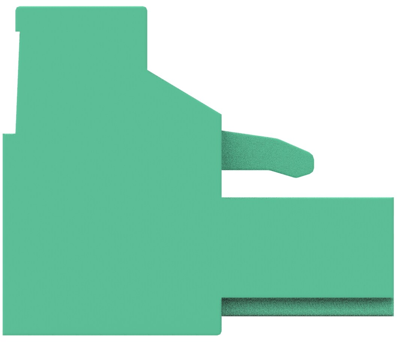

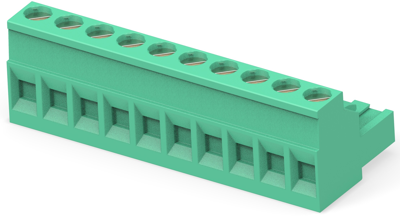

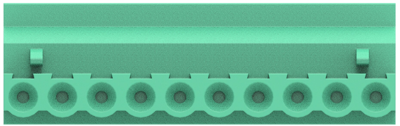

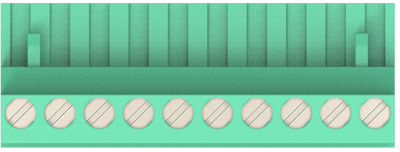

PCB terminal, 10 pole, pitch 5 mm, AWG 30-12, 15 A, cage clamp, green, 1-796640-0
Order No.: 71P3526
EAN: 4099891628215
MPN:
1-796640-0
Unit Price (€ / pc.)
16.5410 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
16.54 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5410 €
10 pcs.
15.3629 €
25 pcs.
14.3395 €
50 pcs.
13.0305 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-796640-0, TE Connectivity
The 1-796640-0 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| AWG cross-section | AWG 30-12 | |
| Grid | 5 mm | |
| Width | 15.5 mm | |
| Assembly | THT | |
| Colour | green | |
| Pin number | 10 pole | |
| Height | 18.4 mm | |
| Connection | cage clamp | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-3 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
