1-796636-7 | TE Connectivity

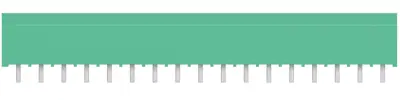

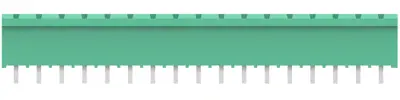

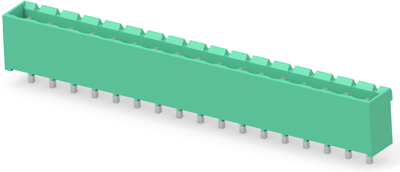

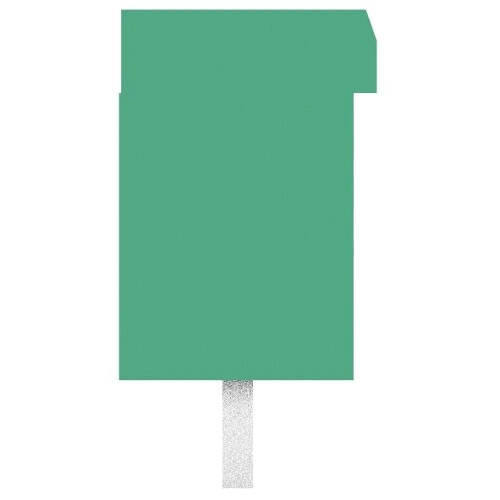

PCB terminal, 17 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 1-796636-7
Order No.: 71P3524
EAN: 4099891628192
MPN:
1-796636-7
Unit Price (€ / pc.)
13.2923 € *
Available in 5 Days: 85 pcs. - if ordered today
Total Price:
13.29 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2923 €
10 pcs.
12.3522 €
25 pcs.
11.5192 €
50 pcs.
10.4720 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-796636-7, TE Connectivity
The 1-796636-7 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 15 A | |
| Cable cross-section | 0.05-3 mm² | |
| AWG cross-section | AWG 30-12 | |
| Width | 8.35 mm | |
| Connection | pin | |
| Height | 12 mm | |
| Colour | green | |
| Grid | 5.08 mm | |
| Assembly | THT | |
| Pin number | 17 pole | |
| Rated voltage | 300 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
