1-796636-0 | TE Connectivity
PCB terminal, 10 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 1-796636-0
Order No.: 71P3523
EAN: 4099891628185
MPN:
1-796636-0
Unit Price (€ / pc.)
2.3681 € *
Available in 5 Days: 1,227 pcs. - if ordered today

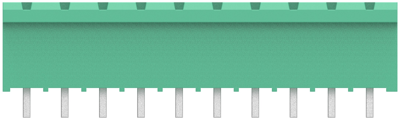

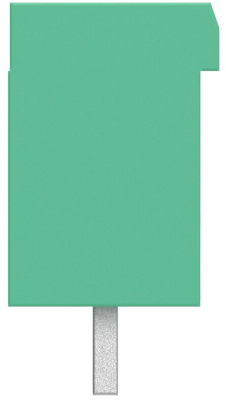

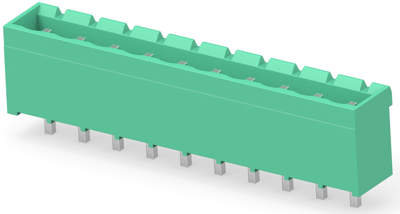

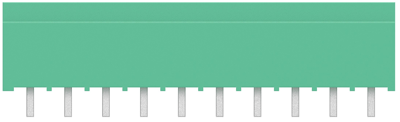

PCB Terminal, 1-796636-0, TE Connectivity
The 1-796636-0 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 10 pole | |
| Rated voltage | 300 V | |
| Grid | 5.08 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Height | 12 mm | |
| Width | 8.35 mm | |
| Connection | pin | |
| Rated current | 15 A | |
| Colour | green | |
| AWG cross-section | AWG 30-12 | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
