1-796634-2 | TE Connectivity

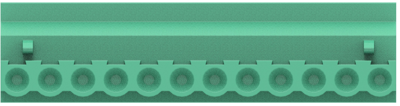

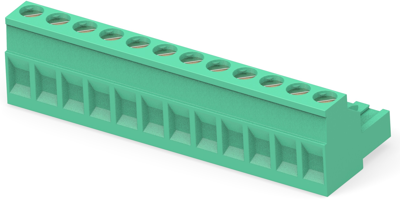

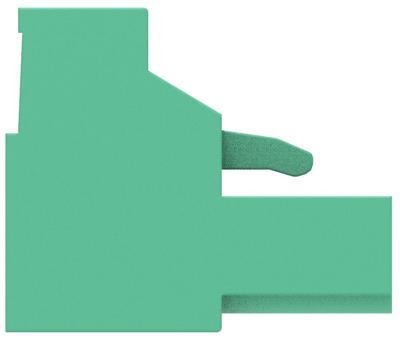

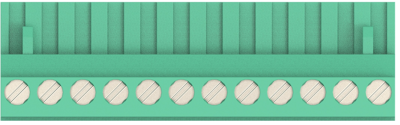

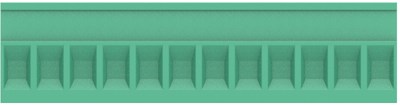

PCB terminal, 12 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, green, 1-796634-2
Order No.: 71P3519
EAN: 4099891628147
MPN:
1-796634-2
Unit Price (€ / pc.)
10.4244 € *
Available in 5 Days: 855 pcs. - if ordered today
Total Price:
10.42 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4244 €
5 pcs.
9.8889 €
10 pcs.
9.2463 €
25 pcs.
8.4371 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-796634-2, TE Connectivity
The 1-796634-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-12 | |
| Rated current | 15 A | |
| Height | 15.5 mm | |
| Colour | green | |
| Assembly | THT | |
| Width | 18.4 mm | |
| Grid | 5.08 mm | |
| Rated voltage | 300 V | |
| Connection | cage clamp | |
| Pin number | 12 pole | |
| Cable cross-section | 0.05-3 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
