1-284519-6 | TE Connectivity
PCB terminal, 16 pole, pitch 3.81 mm, AWG 30-14, 11 A, pin, green, 1-284519-6
Order No.: 71P1815
EAN: 4099891627348
MPN:
1-284519-6
Unit Price (€ / pc.)
5.8548 € *
Available in 5 Days: 245 pcs. - if ordered today
Total Price:
5.85 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8548 €
10 pcs.
5.4383 €
25 pcs.
5.0813 €
50 pcs.
4.6172 €
*incl. VAT plus shipping costs
Subject to prior sale

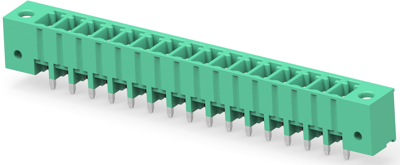

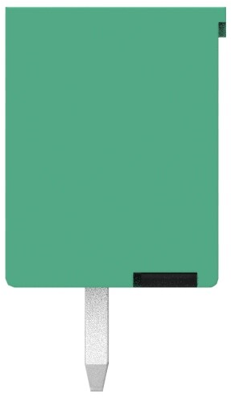

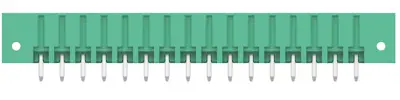

PCB Terminal, 1-284519-6, TE Connectivity
The 1-284519-6 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 30-14 | |
| Colour | green | |
| Connection | pin | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Width | 7.25 mm | |
| Height | 9.2 mm | |
| Assembly | THT | |
| Pin number | 16 pole | |
| Grid | 3.81 mm | |
| Rated current | 11 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
