1-284513-6 | TE Connectivity

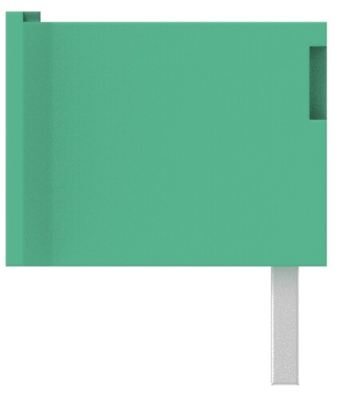

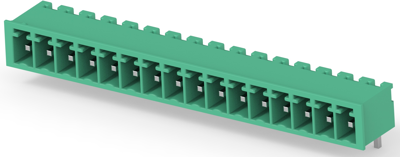

PCB terminal, 16 pole, pitch 3.81 mm, AWG 30-14, 11 A, pin, green, 1-284513-6
Order No.: 71P1812
EAN: 4099891627317
MPN:
1-284513-6
Unit Price (€ / pc.)
8.7227 € *
Available in 5 Days: 331 pcs. - if ordered today
Total Price:
8.72 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7227 €
10 pcs.
8.0920 €
25 pcs.
7.5565 €
50 pcs.
6.8663 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Terminal, 1-284513-6, TE Connectivity
The 1-284513-6 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9.2 mm | |
| Grid | 3.81 mm | |
| AWG cross-section | AWG 30-14 | |
| Rated current | 11 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Colour | green | |
| Pin number | 16 pole | |
| Assembly | THT | |
| Height | 7.3 mm | |
| Connection | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
