1-284391-2 | TE Connectivity

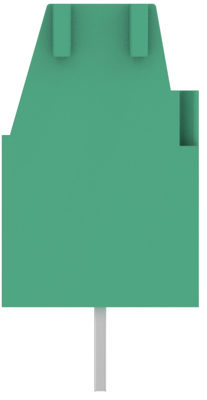

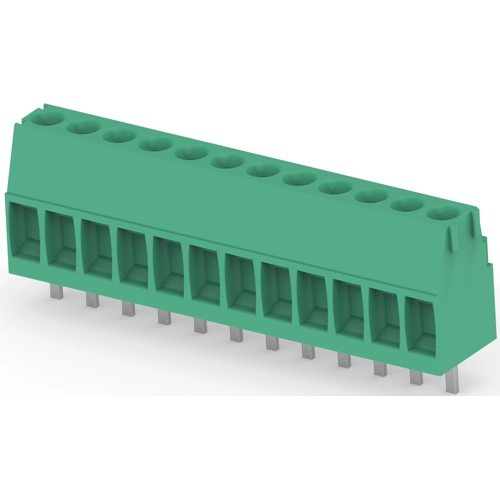

PCB terminal, 12 pole, pitch 3.5 mm, AWG 30-14, 12 A, cage clamp, green, 1-284391-2
Images may differ
Total price
( 9.2701 € * / pcs.)
9.27 €
Available: 0 pcs.
Available in 13 Weeks: 15 pcs.
Leadtime
Description
PCB Terminal, 1-284391-2, TE Connectivity
The 1-284391-2 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-14 | |
| Width | 8.2 mm | |
| Colour | green | |
| Height | 12.6 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 12 A | |
| Pin number | 12 pole | |
| Grid | 3.5 mm |
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
