1-284391-0 | TE Connectivity
PCB terminal, 10 pole, pitch 3.5 mm, AWG 30-14, 12 A, cage clamp, green, 1-284391-0
Order No.: 71P1804
EAN: 4099891627249
MPN:
1-284391-0
Unit Price (€ / pc.)
11.9476 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
11.95 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9476 €
10 pcs.
11.0908 €
25 pcs.
10.3530 €
50 pcs.
9.4129 €
*incl. VAT plus shipping costs
Subject to prior sale

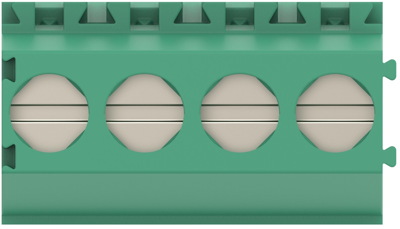

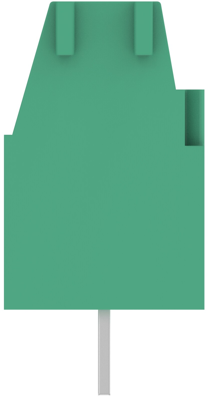

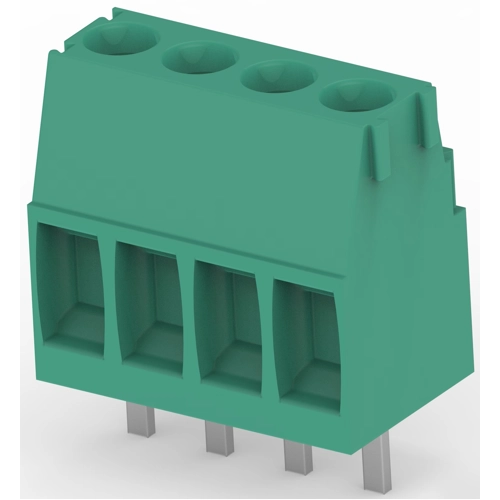

PCB Terminal, 1-284391-0, TE Connectivity
The 1-284391-0 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 8.2 mm | |
| Grid | 3.5 mm | |
| AWG cross-section | AWG 30-14 | |
| Rated current | 12 A | |
| Rated voltage | 300 V | |
| Cable cross-section | 0.05-2 mm² | |
| Colour | green | |
| Pin number | 10 pole | |
| Assembly | THT | |
| Height | 12.6 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
