1-284047-2 | TE Connectivity
PCB terminal, 12 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, green, 1-284047-2
Order No.: 71P1777
EAN: 4099891627188
MPN:
1-284047-2
Unit Price (€ / pc.)
16.5172 € *
Available: 0 pcs.
Available in 5 Days: 396 pcs.
Leadtime: 11 Weeks **
Total Price:
16.52 € *
Price list
Quantity
Price per unit*
1 pcs.
16.5172 €
10 pcs.
15.1963 €
50 pcs.
13.6731 €
100 pcs.
12.3046 €
*incl. VAT plus shipping costs
**Subject to prior sale

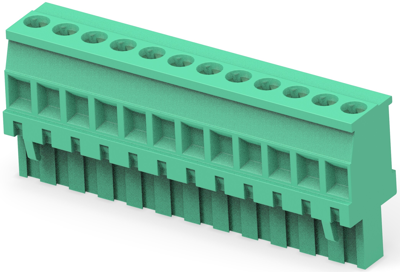

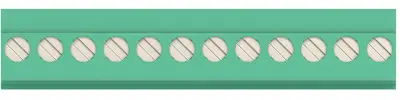

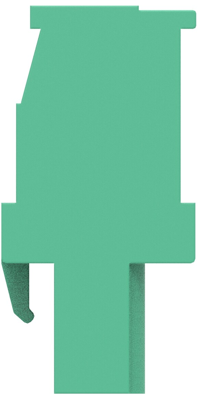

PCB Terminal, 1-284047-2, TE Connectivity
The 1-284047-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Colour | green | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 15 A | |
| Grid | 5.08 mm | |
| Width | 12.5 mm | |
| Height | 25 mm | |
| Cable cross-section | 0.05-3 mm² | |
| Pin number | 12 pole | |
| Connection | cage clamp | |
| Rated voltage | 300 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
