1-2834011-4 | TE Connectivity
PCB terminal, 4 pole, pitch 3.5 mm, AWG 20-14, 6 A, screw connection, green, 1-2834011-4
Order No.: 39P9495
EAN: 4099891039639
MPN:
1-2834011-4
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8211 €
10 pcs.
0.7616 €
25 pcs.
0.7140 €
50 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

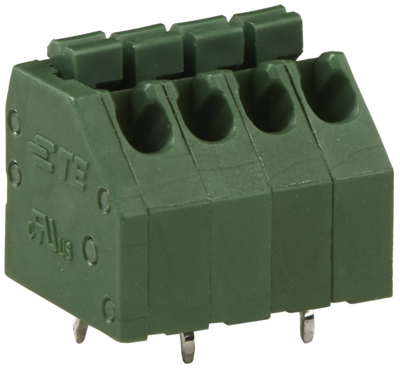

PCB terminal block, 1-2834011-4, TE Connectivity
Terminal Block Connector Type: Receptacle, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 4, Number of Rows: 1, Wire Entry Angle: Top, Current Rating (Max): 6 A, Voltage Rating: 300 VAC, Color: Green, Contact Base Material: Copper, Contact Current Rating (Max): 6 A, Mounting Angle: Vertical, Housing Material: High Temperature Nylon or Polyester, Wire Size: 20 – 14 AWG, Operating Temperature Range: -40 – 105 °C, Circuit Application: Power & Signal.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-14 | |
| Colour | green | |
| Connection | screw connection | |
| Rated voltage | 300 V | |
| Assembly | THT | |
| Pin number | 4 pole | |
| Grid | 3.5 mm | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
