1-282843-2 | TE Connectivity
PCB terminal, 12 pole, pitch 10.16 mm, AWG 30-12, 17.5 A, cage clamp, green, 1-282843-2
Order No.: 71P1763
MPN:
1-282843-2
Unit Price (€ / pc.)
15.2677 € *
Available in 5 Days: 600 pcs. - if ordered today
Total Price:
15.27 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2677 €
10 pcs.
14.1729 €
25 pcs.
13.2328 €
50 pcs.
12.0309 €
*incl. VAT plus shipping costs
Subject to prior sale

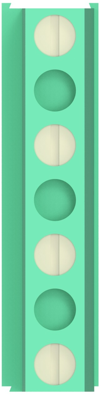

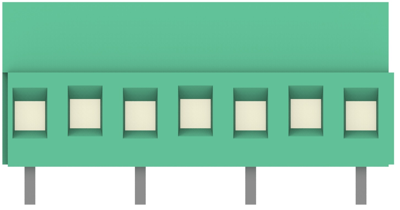

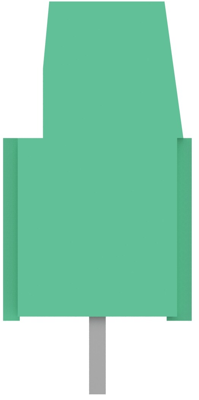

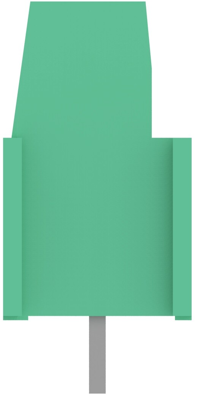

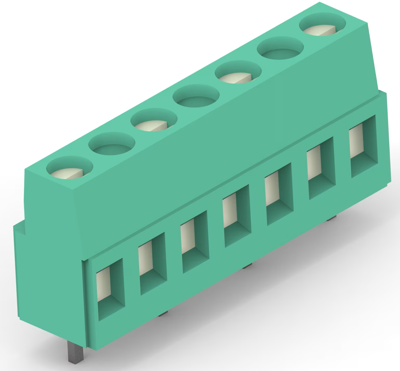

PCB Terminal, 1-282843-2, TE Connectivity
The 1-282843-2 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9 mm | |
| Grid | 10.16 mm | |
| AWG cross-section | AWG 30-12 | |
| Rated current | 17.5 A | |
| Rated voltage | 600 V | |
| Cable cross-section | 0.05-3 mm² | |
| Colour | green | |
| Pin number | 12 pole | |
| Assembly | THT | |
| Height | 15.2 mm | |
| Connection | cage clamp |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
